Commercial Hydronic Loop Troubleshooting: Sizing Expansion Tanks for Multi-Story Buildings
Share
Bigger is not better when it comes to closed-loop hydronic expansion tanks. An oversized tank takes up critical mechanical room real estate and drives up unnecessary equipment costs. Conversely, an undersized tank cannot accept the expanded fluid volume, leading to spiking loop pressures and frequent, costly relief valve discharges.
System Volume and Static Pressure: The Language of Expansion

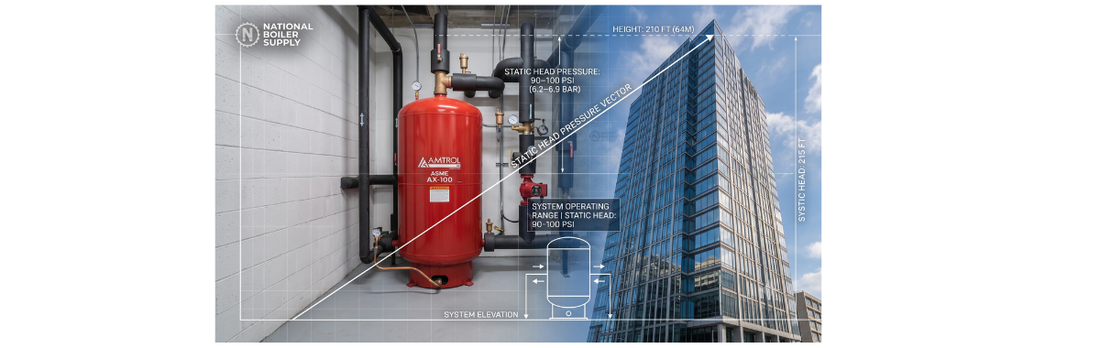

In a multi-story building, expansion tank sizing is dictated by total system water volume and the static head pressure required to push water to the top floor. For a standard 20-story commercial building, static pressure at the base of the system sits around 90 to 100 PSI just to overcome elevation.
To find your required tank acceptance volume using the contractor rule of thumb, you must calculate total loop capacity. A standard rule of thumb for heating comfort loops operating up to 180°F is to allocate 1 gallon of expansion tank acceptance volume for every 100 gallons of total system fluid.
Expansion Tank Sizing Chart by System Volume (20-Story Baseline)
| Total System Volume (Gallons) | Required Acceptance Volume | Recommended Amtrol Model |
| 1,000 gal | 10 gallons | Amtrol AX-15 (or equivalent) |
| 2,500 gal | 25 gallons | Amtrol AX-40 |
| 5,000 gal | 50 gallons | Amtrol AX-60V |
| 7,500 gal | 75 gallons | Amtrol AX-100V |
| 10,000 gal | 100 gallons | Amtrol AX-140V |
Note: These estimates assume a standard baseline mechanical room location on the ground floor, a 125 PSI maximum allowable working pressure (MAWP), and a standard operating delta T.
Variables That Adjust the Number Up or Down
| Factor | Adjust Down (Smaller Tank) | Adjust Up (Larger Tank) |
| Tank Location | Roof-level mechanical room (Lower static head) | Basement mechanical room (High static head) |
| Fluid Composition | 100% Water loop | Glycol blends (30% to 50% requires more acceptance) |
| System Temperature | Low-temp condensing boiler loops (130°F) | High-temp traditional loops (180°F+) |
| Relief Valve Setting | High MAWP threshold (e.g., 150 PSI) | Low MAWP threshold (e.g., 50-75 PSI) |
The Critical Acceptance Trap
If the tank's pre-charge pressure is not set correctly to match the 20-story static head pressure before filling the system, the water will compress the bladder prematurely. This drastically reduces the available acceptance volume, rendering a properly selected tank virtually useless and causing the relief valves to weep during heat cycles.
What Happens With Wrong Sizing (Both Directions)
| Issue | Too Small / Undersized | Too Large / Oversized |
| System Pressure | Spikes rapidly during heating cycles | Stays flat, low pressure drop |
| Relief Valves | Frequent weeping or catastrophic dumping | No relief valve activity |
| Make-up Water | High usage (Fresh water introduces oxygen) | Nominal usage |
| Bladder Wear | High (Constant bottoming out of bladder) | Low mechanical wear |
| Capital Cost | Lower initial cost, high failure costs | High initial equipment cost |
Frequently Asked Questions
Can I use a residential expansion tank on a 20-story commercial loop?
No. Residential tanks are typically rated for lower working pressures and lack the necessary ASME certification and high acceptance volume capacity required to handle the high static head pressure of a multi-story building.
How does glycol affect Amtrol tank selection?
Glycol expands more than water when heated. If your 20-story system utilizes a 50% glycol mix for freeze protection, you must increase your calculated acceptance volume requirement by approximately 20% to 30% to prevent pressure spikes.
Where should the expansion tank be connected to the hydronic loop?
The expansion tank must always be connected on the suction side of the main system pumps. This point is known as the "Point of No Pressure Change," ensuring pump operation increases system pressure down-line rather than dropping suction pressure.
Measure Twice, Install Once
Commercial hydronic balance relies on accurate sizing at the base of the loop. While a rule-of-thumb estimate gets your project budget inline, always cross-reference your total system volume against local mechanical codes and specific fluid attributes before final drop-in.
Browse our inventory of commercial-grade Amtrol Expansion Tanks at National Boiler Supply to secure the exact model required for your next mechanical room project.
