Brazed Plate Heat Exchangers: How They Work and How to Size One

Sometimes two fluid loops need to trade heat without ever mixing. A boiler loop that has to feed a snowmelt system, a glycol loop that has to heat domestic hot water, a high-pressure primary side protecting a low-pressure secondary: all of these are jobs for a heat exchanger, and the brazed plate type is the one most mechanical rooms reach for first.

How a Brazed Plate Heat Exchanger Works

The unit is a stack of thin, corrugated stainless steel plates brazed together into one sealed block. Hot fluid flows through alternating channels, cold fluid flows through the channels in between, and heat crosses the plate walls from one side to the other. The two fluids never touch. The corrugated pattern forces turbulent flow across a very large surface area, which is why a heat exchanger the size of a shoebox can move a surprising amount of heat.

Why Not Just Connect the Loops Directly

• Fluid separation. A glycol-filled heating loop can't share water with a domestic hot water supply. A heat exchanger keeps them physically isolated.
• Pressure separation. A high-pressure primary side can feed a lower-pressure secondary without exposing the secondary's piping and components to the higher rating.
• Equipment protection. Isolating an old, dirty, or scale-prone loop from a new boiler keeps debris and contaminated water away from the boiler's heat exchanger.

What You Need to Know to Size One

Heat exchanger sizing is a thermal calculation, not a pipe-size match. The manufacturer's selection software or capacity charts need these inputs:

• Heat load the exchanger has to transfer, in BTU/hr.
• Entering and leaving temperatures on both the hot side and the cold side.
• Flow rate on each side.
• Fluid type and concentration on each side. A glycol mix transfers heat differently than plain water, so the same exchanger performs differently depending on what's flowing through it.
• Allowable pressure drop on each side.

The number that surprises people is approach temperature, the gap between the hot-side outlet and the cold-side inlet. A tighter approach means the exchanger has to work harder, which means more plates and a larger unit. Asking for a very tight approach on a small exchanger is one of the most common reasons a heat exchanger underperforms once it's installed.

Plate Count and Capacity

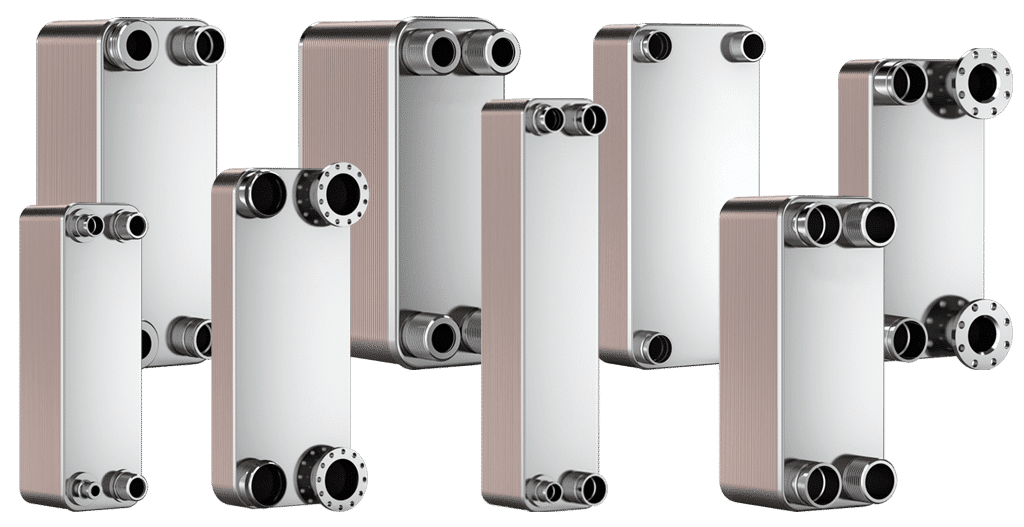

Within a given model family, capacity scales with the number of plates. The model numbers in lines like the Taco TB series, the Armstrong ABX series, and the Bell & Gossett BP series typically encode the plate count, so stepping up in capacity within a family is usually a matter of moving to a higher plate count on the same footprint. More plates also means more pressure drop at a given flow, so a larger unit isn't automatically the better answer. It has to be checked against the pressure drop your pumps can handle.

Water Quality and Maintenance

Brazed units can't be taken apart for cleaning the way gasketed plate exchangers can, so keeping them clean matters more. Hard water and dirty loops can foul the narrow channels over time, raising pressure drop and cutting heat transfer. A strainer ahead of the exchanger and a clean, treated loop go a long way. If performance drops off, a chemical flush is the usual first step before considering replacement.

Where They Show Up

• Domestic hot water generation off a boiler loop
• Snowmelt and radiant systems that run on a glycol mix
• Isolating pool or spa heating from the boiler loop
• Separating old and new sections of a retrofit system
