Fireye Flame Safeguard Systems: A Buyer's Guide

A boiler burner can only do one thing correctly: burn fuel that's actually igniting. If fuel keeps flowing into the combustion chamber without a flame actually established, that unburned fuel accumulates, and a delayed ignition or a stray spark turns a startup sequence into an explosion. Fireye's flame safeguard and burner management systems exist specifically to prevent that, and understanding the pieces that make up the system matters if you're specifying or replacing one.

What a Flame Safeguard System Actually Does

A flame safeguard (or burner management) system continuously monitors whether a flame is actually present during startup and normal operation, and shuts off fuel flow immediately if it isn't. It sequences the burner startup correctly (purge, pilot ignition, main flame proving) and locks out the burner entirely if any step fails to verify correctly, rather than allowing an unproven condition to continue. This isn't a redundant safety layer stacked on top of normal operation, it's the control system the burner actually depends on to run at all.

Flame Scanners: How the System Actually Sees the Flame

The scanner is the sensing component, and Fireye offers a few distinct technologies depending on the application:

• UV (ultraviolet) scanners detect the ultraviolet light signature specific to an open flame, effective for most gas and oil burner applications.
• IR (infrared) scanners detect the infrared signature instead, often used where UV detection is less reliable or where the flame characteristics favor IR sensing.

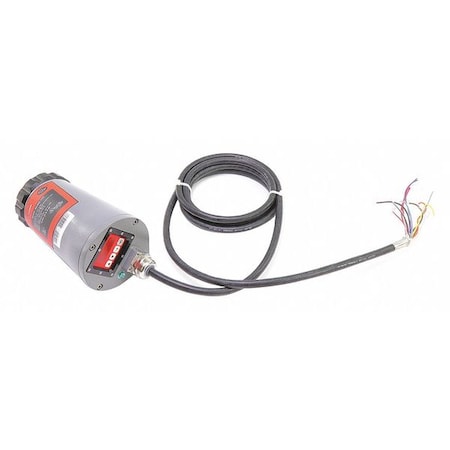

• Dual UV/IR scanners (like the Fireye 95DSS2 series) combine both detection methods in one unit, cross-checking between the two signatures for more reliable flame verification, particularly valuable on burners where a single detection method can produce false readings.
• Self-check scanners continuously verify their own ability to detect a genuine flame signal, rather than just reporting a flame/no-flame state, catching a degraded or failing scanner before it becomes a false-positive safety risk.

The Burner Control Chassis: Where It All Comes Together

The burner control (like the Fireye 70D40 or the NX6100 integrated parallel positioning control) is the central unit that runs the startup sequence, interprets the scanner's signal, and controls ignition and fuel valve operation. Different chassis are built for different burner complexity, from straightforward single-fuel gas or oil applications up through parallel positioning controls that manage fuel-air ratio across the full firing range on more sophisticated systems.

Amplifiers, Programmers, and Expansion Modules

Beyond the core scanner and control chassis, Fireye's ecosystem includes flame amplifier modules that process the raw scanner signal, programmer modules that handle the timed startup sequence logic, and expansion modules (like the E300) that add display, interface, or additional I/O capability to an existing control. These are typically matched to a specific control chassis rather than being universally interchangeable, confirming compatibility with your existing base unit matters before ordering an accessory module.

Why Matching the Exact System Matters

Flame safeguard components are safety-critical, code-regulated equipment, not a category where a close-enough substitute is an acceptable shortcut. A scanner, amplifier, or programmer module needs to match the specific control chassis it's paired with, both electrically and in terms of the detection technology the burner application actually requires. If you're replacing a failed component on an existing system, matching the original manufacturer part number is the safe starting point rather than assuming a similar-looking part will function correctly.

Bottom Line

A flame safeguard system is the reason a burner startup sequence is safe to leave unattended. Whether you're specifying a new burner management system or replacing a failed scanner or control module on an existing one, this is equipment where matching the exact specification isn't optional.
