How to Size a Backflow Preventer

A backflow preventer does a job most people never think about until it fails: keeping water flowing in one direction only, so contaminated water from a building's plumbing, irrigation, or process system can never siphon back into the potable water supply. Cities and states require them for exactly this reason, and getting the type and size wrong is one of the more common mistakes on a mechanical install.

Why Backflow Prevention Is Required

Backflow happens when a drop in supply-side pressure (a water main break, heavy firefighting draw, or a pump shutdown) creates a vacuum that can pull water backward through a connection. If that connection touches anything non-potable, boiler chemicals, irrigation runoff, a commercial dishwasher, contaminated water can get pulled straight into the drinking water system. That's why plumbing codes require a backflow preventer at nearly every cross-connection point between a potable supply and a non-potable system, and why most jurisdictions require annual testing and certification once one is installed.

RPZ vs. Double Check Valve: Two Different Protection Levels

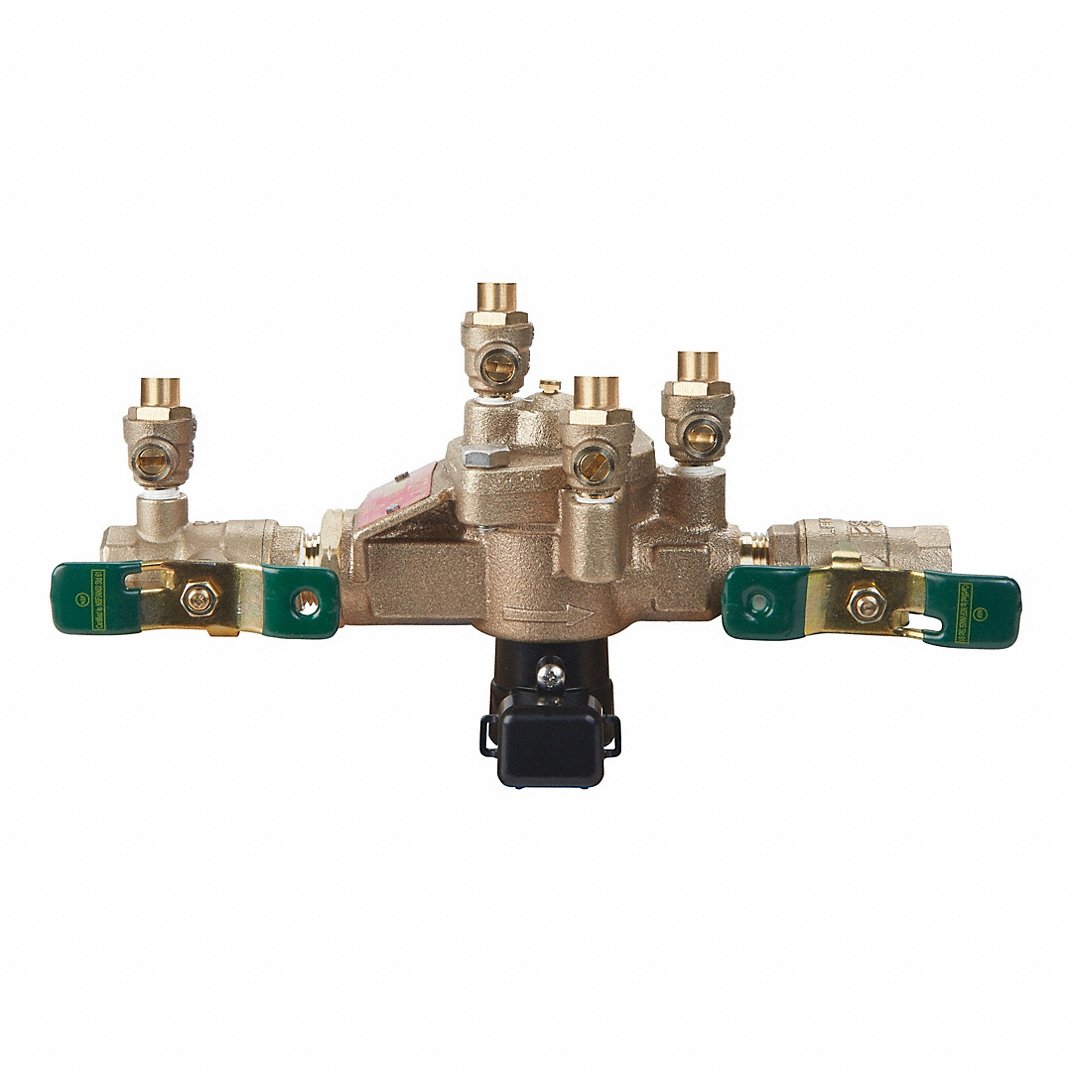

• Reduced Pressure Zone (RPZ) assemblies use two independently operating check valves plus a pressure-differential relief valve between them, which dumps water to atmosphere (through a visible air gap) if either check valve fails. This is the highest level of mechanical backflow protection available, and it's required for high-hazard connections, boiler feed water, chemical injection points, anywhere backflow would pose a real health risk.
• Double Check Valve Assemblies (DCVA) use two check valves in series without the relief mechanism. They provide solid protection for lower-hazard applications but don't have the RPZ's fail-safe discharge, which is why code typically restricts them to less critical connections.

The hazard classification of your specific connection, not personal preference, determines which type code actually requires. Check with your local authority having jurisdiction (AHJ) before assuming a DCVA is acceptable where an RPZ might be mandated.

Sizing: Match Flow, Not Just Pipe Diameter

Backflow preventers are rated for a maximum flow rate (GPM) at an acceptable pressure loss, and that rating needs to meet or exceed your system's actual peak demand flow, not just match the pipe's nominal diameter. An undersized assembly creates excessive pressure drop across the device, which can starve downstream equipment of adequate pressure even though the pipe itself was sized correctly. Our Backflow Preventer Sizing Calculator walks through matching your system's peak flow against the correct assembly size.

Installation Notes

• RPZ assemblies need drainage clearance below the relief valve outlet, since they're designed to discharge water to atmosphere during a failure event. Installing one in a location without adequate drainage or clearance defeats the purpose of the fail-safe mechanism.
• Orientation matters. Most assemblies are designed for horizontal installation; check the manufacturer's documentation before installing vertically, since not all models support it.
• Freeze protection is a real consideration for any RPZ installed in an unheated or exterior location, given the internal components and potential for standing water in the relief path.

Testing and Certification

Most jurisdictions require annual testing by a certified backflow tester, with results reported to the local water authority. This isn't a one-time install-and-forget device: the internal check valves and relief mechanism are mechanical components that can degrade over time, which is exactly why ongoing testing is mandated rather than left to chance.

National Boiler Supply carries Watts RPZ backflow preventer assemblies from 1" through 2", plus smaller residential-scale models from Honeywell. Run your numbers through our Backflow Preventer Sizing Calculator, or reach out with your system's peak flow and hazard classification and we'll help you select the right assembly.
