Mineral Wool Insulation: A Guide for Boiler and Steam Piping

A correctly sized boiler or a properly balanced hydronic loop still loses efficiency fast if the piping and equipment around it isn't insulated to handle the operating temperature. Mineral wool is the standard material for this in commercial and industrial applications, and it's worth understanding why it dominates high-temperature insulation specifically, rather than the fiberglass or foam products more common in lower-temperature residential work.

Why Mineral Wool for High-Temperature Applications

Mineral wool (also called rock wool or stone wool) is manufactured from molten rock or slag spun into fibers, giving it genuinely high temperature tolerance well beyond what fiberglass or foam insulation can handle. It's non-combustible, doesn't melt or degrade at boiler and steam system operating temperatures, and maintains its insulating performance across a wide temperature range. For pipe, equipment, and vessel insulation on commercial boilers, steam systems, and industrial process equipment, it's the material actually rated for the job.

Board vs. Batt Form

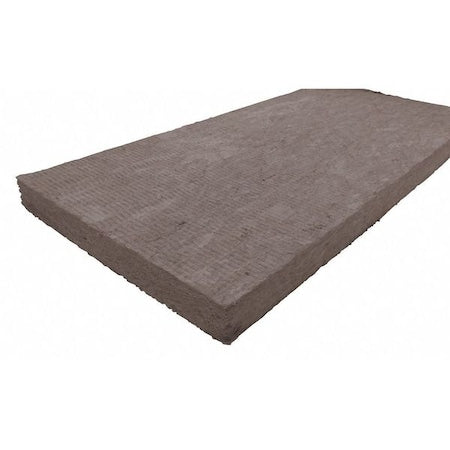

Mineral wool insulation for this application typically comes in rigid board form, dimensioned in standard thickness, width, and length combinations, rather than the flexible batt insulation used in wall cavities. Rigid boards hold their shape around pipe and equipment surfaces and stand up to the mechanical handling involved in commercial installation better than flexible batt material would in this context.

Density and Facing Options

• Density (commonly rated in lb/cu ft, 8 lb/cu ft being a standard commercial grade) affects both insulating performance and rigidity. Higher-density boards hold their shape better under mechanical stress but cost more per board.
• Facing material varies by application. FSK (foil-scrim-kraft) facing adds a vapor barrier and a finished appearance, useful where the insulation might be visible or where moisture intrusion is a concern. Unfaced boards are used where a separate vapor barrier or jacketing system will be applied afterward, or where facing isn't required for the specific application.

Sizing: Match Thickness to Operating Temperature and Pipe Size

Insulation thickness isn't a one-size-fits-all decision. Higher operating temperatures and larger pipe or equipment diameters generally call for thicker insulation to hold surface temperature and heat loss within acceptable limits. Manufacturer thickness charts, typically organized by pipe size and operating temperature, are the right reference point rather than defaulting to whatever thickness was used on a previous, possibly different-temperature application.

Common Applications

• Boiler and steam piping, where operating temperatures routinely exceed what fiberglass or foam insulation can handle safely.
• Process equipment and vessels in industrial applications, where consistent thermal performance at elevated temperature matters for both efficiency and personnel safety around hot surfaces.
• Fire-rated applications, where mineral wool's non-combustible rating is a code requirement, not just a performance preference.

Why This Matters for System Efficiency

Uninsulated or under-insulated high-temperature piping loses heat continuously to the surrounding space, heat the boiler has to keep replacing. On a system that's already been correctly sized and balanced, inadequate insulation is one of the more overlooked sources of ongoing energy waste, since it doesn't show up as an obvious equipment failure, just steadily higher fuel or electrical cost than the system should actually need.

National Boiler Supply carries mineral wool pipe and equipment insulation from Roxul and Unitherm, in a range of thicknesses, densities, and facing options. Reach out with your pipe size, operating temperature, and application and we'll help you find the right board.
