Elastomeric Foam Pipe Insulation: A Guide for Chilled Lines

Not every piping insulation job calls for rigid mineral wool board. Chilled water lines, refrigerant piping, and other applications running below ambient temperature have a different problem to solve entirely, condensation forming on a cold pipe surface, and that calls for a different material with different properties.

Why Elastomeric Foam Instead of Mineral Wool

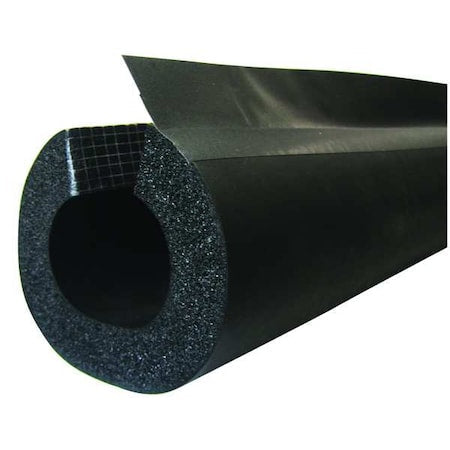

Elastomeric foam pipe insulation (like the K-Flex line, made from NBR/PVC-based closed-cell foam) is built around a closed-cell structure that acts as its own vapor barrier, without needing a separate facing material. On a cold pipe, that's the critical property: an open-cell or fibrous insulation without a proper vapor barrier lets moisture migrate through to the cold pipe surface and condense inside the insulation itself, defeating the purpose and eventually causing real water damage. Closed-cell foam blocks that moisture path directly.

Flexible Tube Form

Unlike rigid mineral wool boards, this material ships as flexible foam tubing, sized to slide directly over a pipe's outside diameter. That flexibility makes it faster to install around bends and fittings than rigid board, at the tradeoff of lower maximum temperature tolerance, which is fine, since this product category isn't targeting high-temperature boiler or steam applications in the first place.

Slit vs. Unslit Installation

• Slit with adhesive and flap tubing has a factory-cut lengthwise slit with a self-adhesive closure, letting it be opened, wrapped around existing pipe, and sealed without needing to feed the tube over a pipe end. This is the practical choice for retrofit work on pipe that's already installed and connected.
• Unslit tubing is a continuous closed tube, installed by sliding it over a pipe end before the pipe is connected. It gives a cleaner, seamless result but only works when you have access to a free pipe end to feed it onto, which usually means new construction or a section being fully replaced.

Sizing by OD and Wall Thickness

Two numbers determine the right size: the pipe's actual outside diameter (not nominal pipe size, since actual OD varies by pipe type and schedule), and the wall thickness needed for your application's temperature differential. A larger differential between pipe temperature and ambient air generally calls for thicker wall insulation to keep the outer surface above the dew point and prevent condensation from forming on the insulation's exterior instead of the pipe itself.

Where This Material Fits

• Chilled water piping, where preventing condensation drip is often the primary insulation requirement, not just thermal efficiency.
• Refrigerant lines on HVAC and refrigeration equipment.
• Any below-ambient-temperature piping where moisture control matters as much as or more than pure thermal performance.

This is a different material for a different problem than the mineral wool boards covered in our high-temperature insulation guide. Choosing between them comes down to which side of ambient temperature your piping actually runs on.

National Boiler Supply carries K-Flex elastomeric foam pipe insulation across a wide range of pipe sizes and wall thicknesses, in both slit and unslit configurations. Reach out with your pipe OD and application and we'll help you find the right size.
