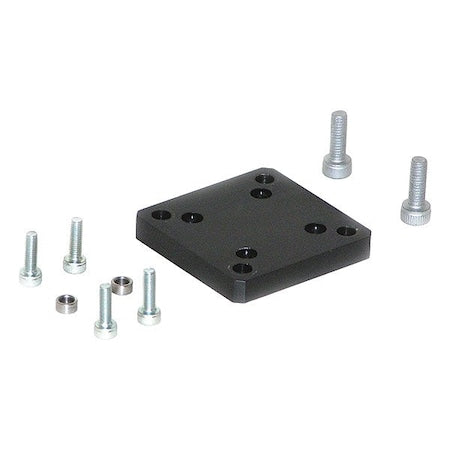

Afag 11001621 - Connection Plate,10 mm H
Afag 11001621 - Connection Plate,10 mm H
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The AFAG - 11001621 is a connection plate designed for joining and securing pneumatic components such as valves, manifolds, cylinders, and fittings. This plate facilitates the alignment and mounting of pneumatic elements, enabling the routing or distribution of compressed air within a system. It features mounting holes and threaded ports to support attachment and modular assembly. Dimensions: Length 60 mm, Width 80 mm, Height 10 mm; Mount hole spacing 48 mm x 45 mm; Mount hole size M6.
Key Features:
- - Mount hole center-to-center length: 48 mm
- - Mount hole center-to-center width: 45 mm
- - Mount hole size: M6
- - Includes four center bushings sized Ø9x4 mm for component alignment.
- - Number of mount holes: 4
- - Includes four mounting screws, sizes M6 x 16 and M6 x 20 mm, for installation.
- - Overall dimensions: Length 60 mm, Width 80 mm, Height 10 mm.
- - Mounting type specified as plate for flat-surface attachment.
- - Weight: 0.123 kg
