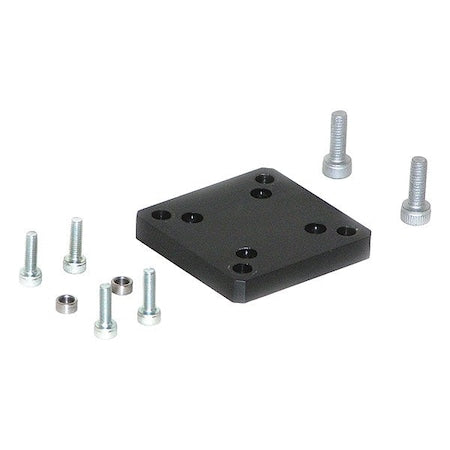

Afag 50003068 - Connection Plate,12 mm H
Afag 50003068 - Connection Plate,12 mm H
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The AFAG - 50003068 is a connection plate designed for joining and securing pneumatic components such as valves, manifolds, cylinders, and fittings. It provides a flat mounting surface with aligned holes and threaded ports to facilitate the routing and distribution of compressed air between pneumatic elements. The plate provides mounting holes and threaded ports for attaching and aligning components.
Key Features:
- - Mounting Type: Plate; allows attachment to equipment via mounting holes.
- - Mount Hole Size: M4, M6; accommodates metric mounting screws.
- - Mounting Screw Thread Sizes: M4 x 14, M4 x 20, M6 x 12, M6 x 20; specifies compatible screw dimensions.
- - Number of Mount Holes: 12; 12 mounting holes for attachment of screws.
- - Number of Mounting Screws Included: 12; screws are included for installation.
- - Number of Center Bushings Included: 4; bushings with sizes Ø7x3 and Ø9x4 mm are supplied.
- - Overall Dimensions: 60 mm length, 68 mm width, and 12 mm height.
- - Weight: 0.122 kg; denotes the net mass of the connection plate.
