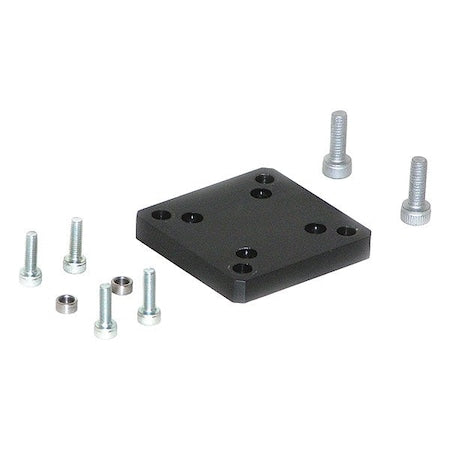

Afag 50077116 - Connection Plate,8 mm H
Afag 50077116 - Connection Plate,8 mm H
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The AFAG - 50077116 is a connection plate designed for use with pneumatic systems. It functions as a flat mounting component to join and secure pneumatic elements, providing aligned mounting holes and threaded ports for attachment. This plate assists in routing or distributing compressed air between components and facilitates modular assembly and maintenance. It features a plate mounting type and is constructed to accommodate specific center bushings and mounting screws. Key Features:
- - Includes 4 center bushings sized Ø5x2.5 mm and Ø7x3 mm for fitting pneumatic components.
- - Equipped with 4 mounting holes compatible with M3 and M4 screw sizes.
- - Supplied with 4 mounting screws, M3 x 10 mm and M4 x 12 mm thread dimensions.
- - Overall dimensions: 40 mm length, 45 mm width, and 8 mm height.
- - Weight: 0.03 kg.
