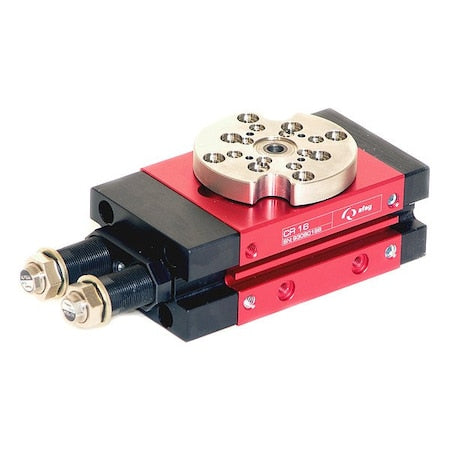

Afag 50112941 - Rotary Module,4 bar
Afag 50112941 - Rotary Module,4 bar
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The AFAG - 50112941 is a pneumatic rotary module designed to convert compressed-air power into controlled angular motion. It provides two discrete operating positions with an angle of rotation of 180 degrees and an accuracy of +/- 0.05 degrees. The module operates within a pressure range of 4 to 8 bar and Operating temperature range: 32 Degrees F to 50 Degrees C. It is equipped to deliver a maximum torque: 1.25 N-m.
Key Features:
- - Angle of Rotation: 180 Degrees
- - Number of Positions: 2
- - Accuracy: +/- 0.05 Degrees
- - Operating Pressure Range: 4 to 8 bar
- - Operating Temperature Range: 32 Degrees F to 50 Degrees C
- - Maximum Torque: 1.25 N-m
- - Primary Attachment Grid Size: 48 mm
- - Secondary Attachment Grid Size: 30 mm
- - Primary Attachment Thread Size: M6
- - Secondary Attachment Thread Size: M4
- - Includes: (2) M10 x 1-4 Shock Absorber SD, (2) M6 x 36/8 Special Screws, (2) Ø7 x 3 Centering Bushings, (2) Ø9 x 4 Centering Bushings
