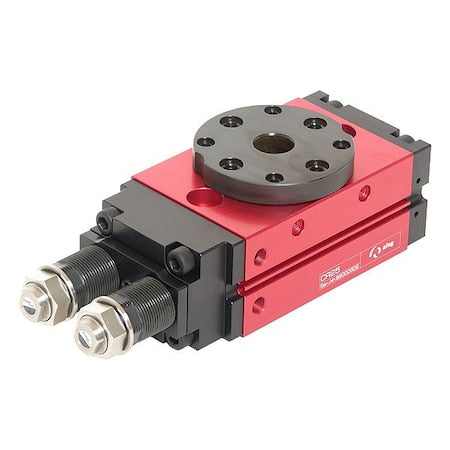

Afag 50254300 - Rotary Module,4 bar
Afag 50254300 - Rotary Module,4 bar
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The AFAG - 50254300 is a pneumatic rotary module designed to convert compressed air power into controlled angular motion. It features a 180-degree angle of rotation with two discrete operating positions, enabling indexed rotation for various automation and tooling setups. Operating temperature range: 0 to 50 C (32 to 122 F) and operating pressure range: 4 to 8 bar (gauge). Maximum torque output: 6.2 N·m.
Key Features:- - Accuracy of +/- 0.05 Degrees for precise rotational control.
- - Primary attachment grid size of 96 mm with M10 pass and M12 from below thread sizes for mounting.
- - Secondary attachment grid size of 60 mm with M8 secondary thread size.
- - Includes (2) M10 x 70 mounting screws, (2) Ø19 x 5.8 centering bushings, and (2) SD M20 x 1.5-1 shock absorbers.
- - Operating temperature range: 0 to 50 C (32 to 122 F).
- - Operating pressure range: 4 to 8 bar (gauge).
- - Maximum torque output: 6.2 N·m.
