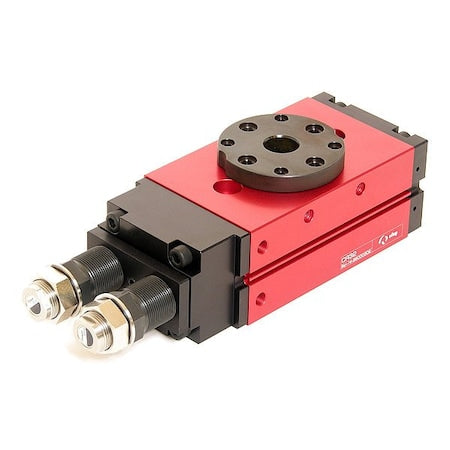

Afag 50254301 - Rotary Module,4 bar
Afag 50254301 - Rotary Module,4 bar
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The AFAG - 50254301 is a pneumatic rotary module that converts compressed air power into controlled angular motion. Rotation angle: 180 degrees. Number of operating positions: 2. The module supports a maximum torque of 13.5 N-m and operates within a pressure range of 4 to 8 bar. It is designed for use in automation and motion control systems requiring precise rotary positioning with an accuracy of +/- 0.05 degrees (under specified operating conditions). The operating temperature range: 0 to 50 C (32 to 122 F).
Key Features:
- - Rotation angle: 180 degrees
- - Number of operating positions: 2
- - Accuracy: +/- 0.05 degrees (under specified operating conditions)
- - Torque capacity: Maximum 13.5 N-m
- - Operating pressure range: 4 bar minimum to 8 bar maximum
- - Operating temperature range: 0 to 50 C (32 to 122 F)
- - Mounting interface: 96 mm grid; M10 through M12 threaded holes from below
- - Secondary attachment grid size: 60 mm with M8 threaded attachment
- - Includes: (2) M10 x 70 mounting screws, (2) Ø19 x 5.8 centering bushings, (2) SD M20 x 1.5-1 shock absorbers
