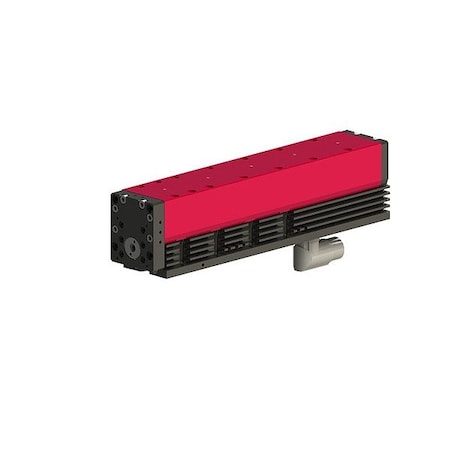

The AFAG - 50425974 is a pneumatic linear module designed to provide guided linear motion powered by pneumatic actuation. It delivers precise, repeatable straight-line movement with a maximum stroke of 100 mm and a peak force output of 255 N. The system operates within a temperature range of 0 Degrees C to 50 Degrees C, and its moving components weigh 1.6 kg. The module uses metric measurements and includes threaded attachment points sized M6, with an attachment grid spacing of 48 mm by 48 mm.
Key Features:
- - Maximum stroke of 100 mm for linear travel.
- - Peak force capacity of 255 N for actuation.
- - Repeatability tolerance of ±0.05 mm for consistent positioning.
- - Moving weight of 1.6 kg representing the mass of movable components.
- - Operating temperature range from 0 Degrees C to 50 Degrees C.
- - Attachment grid size spaced at 48 mm x 48 mm for mounting.
- - Thread size M6 for attachment points.
- - Operates on 72V DC electrical input.
