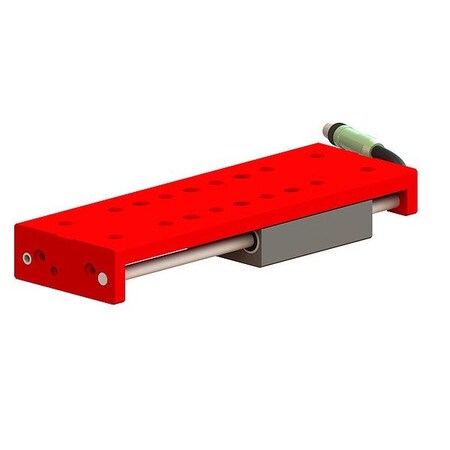

The AFAG - 50433804 is a pneumatic linear module with a guided slide and pneumatic actuator enabling linear motion within specified tolerances. It provides straight-line travel within the specified travel distance and load support per specification. This module operates within a temperature range of 10 Degrees C to 40 Degrees C and offers a maximum stroke length of 100 mm. It is compatible with metric measurement standards and uses attachment points with M3 and M4 thread sizes spaced at a 30 mm x 30 mm grid. Key Features:
- - Maximum stroke: 100 mm for linear travel distance.
- - Peak force output of 10.7 N during operation.
- - Repeatability tolerance of +/-0.02 mm.
- - Moving weight of 0.199 kg representing the mass of the movable components.
- - Attachment grid size of 30 mm x 30 mm for mounting alignment.
- - Attachment thread sizes: M3 and M4 for connection points.
- - Operating temperature range from 10 Degrees C minimum to 40 Degrees C maximum.
- - Voltage rating: up to 75 V DC where applicable.
