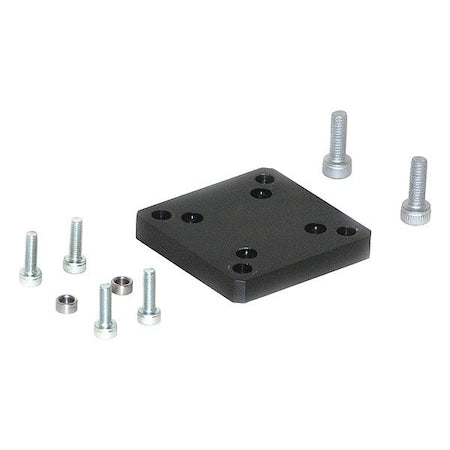

Afag 50573133 - Connection Plate,9 mm H
Afag 50573133 - Connection Plate,9 mm H
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The AFAG - 50573133 is a connection plate designed for use in pneumatic systems to join and align pneumatic components (valves, manifolds, cylinders, and fittings) using mounting holes and threaded ports, in accordance with the plate's mounting pattern. It allows modular assembly and pneumatic connections consistent with the plate's hole pattern and port configuration. This plate is mounted using a plate-type mounting system and comes with multiple center bushings and mounting screws included. Key Features:
- - Mount hole center-to-center dimensions: 30 mm length and 30 mm width.
- - Mount hole sizes accommodate M2.5, M3, and M4 screws.
- - Mounting screws included: Ten screws sized M2.5 x 10, M3 x 10, and M4 x 10.
- - Number of mounting holes: 10.
- - Number of center bushings included: 8 with sizes Ø4x2 mm, Ø5x2.5 mm, and Ø7x3 mm.
- - Overall dimensions: 48 mm width and 9 mm height.
- - Weight of the connection plate is 0.05 kg.
