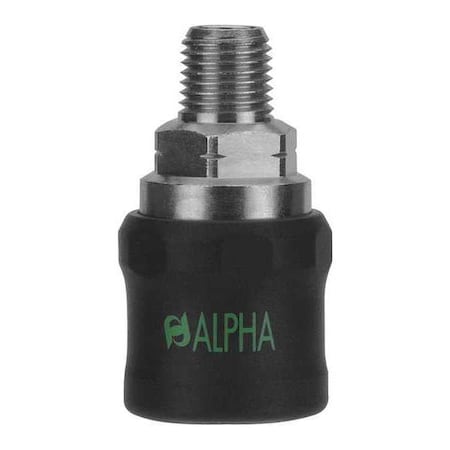

Aignep Usa 80621-04 - Safety Exhaust Coupler,1/4",Brass,45 cfm
Aignep Usa 80621-04 - Safety Exhaust Coupler,1/4",Brass,45 cfm
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The AIGNEP USA - 80621-04 is a quick connect hose coupling for pneumatic applications. It supports connection and disconnection without requiring tools using a vented locking mechanism. Is constructed from brass with a zinc black anodized finish, this coupling includes an integrated poppet valve and uses NPT threaded connections. It provides a sealed joint using a nitrile seal. Compatible with industrial interchange standards (per specified interchange requirements), it is rated for 1/4 in hose and coupling size connections.
Key Features:
- - Application: Pneumatic
- - Connection Type: NPT thread with 1/4"-18 size
- - Coupling Component: Socket
- - Coupling Locking Type: Safety Vent
- - Coupling Size: 1/4 in
- - Hose Fitting Gender: Male
- - Hose Fitting Size: 1/4 in
- - Includes Valve: Yes, Poppet type
- - Interchange Type: Industrial
- - Material: Brass with Zinc Black Anodized finish
- - Max. Flow Rate: 595 lpm
- - Max. Working Pressure @ 70°F: 220 psi
- - Max. Outside Diameter: 1 3/16 in
- - Overall Length: 2.19 in
- - Seal Material: Nitrile
- - Temperature Range: 0°F to 180°F
