Akg A130-3 - Oil Cooler,AC,20-200 GPM,230/460 V,5 HP
Akg A130-3 - Oil Cooler,AC,20-200 GPM,230/460 V,5 HP
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

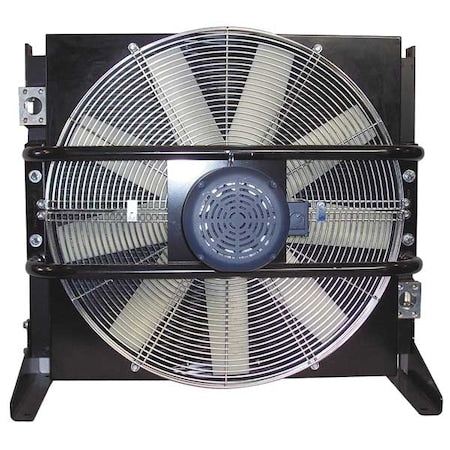

The AKG A130-3 forced air oil cooler is designed for hydraulic systems requiring dependable heat dissipation across a 20 to 200 gpm flow range. This unit removes up to 130 hp of heat and features a 5 hp AC motor with a totally enclosed fan-cooled design for reliable operation in demanding industrial environments. Built with an aluminum core and finished with a black painted, powder-coated coating, it also includes mounting feet, mounting bracket, and mounting hardware for installation.
Key Features:
- - Forced air oil cooler with 5 hp AC motor for hydraulic oil cooling applications.
- - Flow range of 20 to 200 gpm for compatibility with a wide range of hydraulic systems.
- - Removes up to 130 hp of heat to help maintain system temperature and performance.
- - Aluminum construction with black painted, powder-coated finish for durability and corrosion resistance.
- - One fan with PPG fan blade for efficient airflow.
- - Steel fan guard, shroud, and mounting bracket for added protection and support.
- - 2 in SAE 4 bolt flange female inlet and outlet ports for system connection.
- - Rated for maximum pressure of 377 psi.
- - Maximum operating temperature of 250 degrees F.
- - Compatible with hydraulic fluids up to ISO 320.
- - Totally enclosed fan-cooled motor, 3 phase, 230/460V AC.
- - Full load amps: 13.2/6.6 A.
- - Includes mounting feet, mounting bracket, and mounting hardware.
- - Dimensions: 40.94 in W x 37.56 in H x 25.1 in D.
