Americraft Fan BRV-848-5-3-EXP - Belt,48in,Roof,Exh,28150 CFM,3 PH,5 HP,XP
Americraft Fan BRV-848-5-3-EXP - Belt,48in,Roof,Exh,28150 CFM,3 PH,5 HP,XP
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

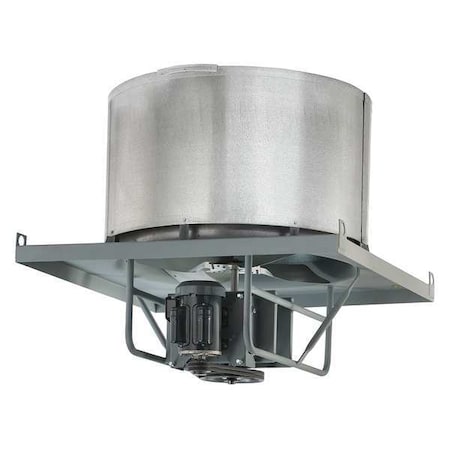

The Americraft Fan BRV-848-5-3-EXP is a belt drive axial upblast roof exhaust fan designed for roof curb mounting in applications requiring high-volume exhaust of flammable vapor air. This unit features a 48 in blade diameter, a 5 hp TEFC electric motor mounted out of the airstream, and delivers exhaust airflow from 25,000 to 33,160 cfm at static pressures up to 1/2 in. wc. Built with a galvanized steel housing, galvanized steel blade, aluminum propeller, and ball bearing pillow block bearings, it is suited for demanding commercial and industrial ventilation applications.
Key Features:
- - Belt drive axial upblast roof exhaust fan with 48 in blade diameter for high-capacity roof exhaust applications.
- - Provides 33,160 cfm at 0.000 in. SP and 25,000 cfm at 0.500 in. SP.
- - Designed to operate at static pressures up to 1/2 in. wc.
- - Equipped with a 5 hp electric motor rated for 230/460V AC, three phase, 60 Hz power.
- - Totally enclosed fan cooled motor is mounted out of the airstream for added protection.
- - Maximum fan and motor speed is 800 RPM.
- - Constructed with a galvanized steel housing, galvanized steel blade, and aluminum propeller.
- - Uses ball bearing pillow block bearings for dependable operation.
- - Includes drive package and motor for a complete fan assembly.
- - Butterfly damper section features blades that open when the fan is energized and close when the unit is off.
- - Designed for flammable vapor air type applications.
- - Roof curb mount design with 63 in x 63 in square base.
- - Overall dimensions measure 63 in W x 63 in D x 57 1/4 in H.
- - Sound level is 45 sones at 0.125 in. SP and 0.250 in. SP measured at 5 ft.
