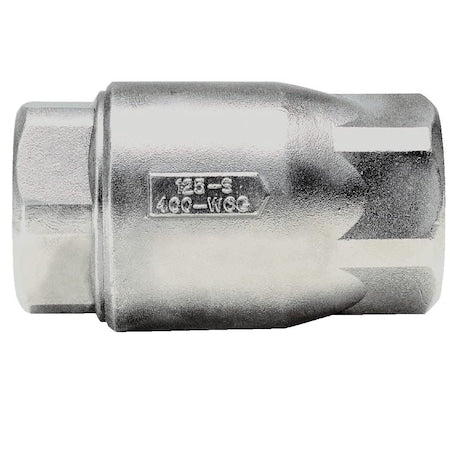

Apollo Valves 6210301 - 1/2" FNPT Stainless Steel Ball Cone Spring Check Valve
Apollo Valves 6210301 - 1/2" FNPT Stainless Steel Ball Cone Spring Check Valve
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The APOLLO VALVES 6210301 is a 1/2 in inline ball cone spring check valve used for general purpose reverse flow prevention in compressed air and steam service. It has a stainless steel body with an RPTFE ball cone and seat, a 316 stainless steel spring, and FNPT x FNPT female threaded connections. The spring-loaded, center-guided design supports fast seating action, and the straight-through flow path is designed to reduce pressure loss.
Key Features:
- Valve type: Ball cone spring check valve with 2-way inline body design.
- Body material: Stainless steel construction.
- Check mechanism: Ball cone design with RPTFE check mechanism and seat material.
- Connections: 1/2 in FNPT x FNPT female threaded ends.
- Cracking pressure: 0.5 psi opening pressure.
- Flow coefficient: Cv 1.4.
- Pressure rating: 400 psig CWP max pressure; 150 psi SWP max steam pressure.
- Temperature range: 33 to 350 degrees F operating temperature.
- Mounting: Can be installed in horizontal or vertical positions.
- Spring material: 316 stainless steel.
- Standards: CRN.
- Dimensions: 2.31 in overall length and 1-1/8 in overall height.
