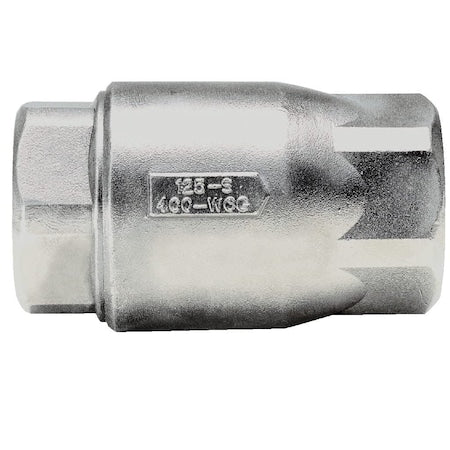

Apollo Valves 6210501 - 1" FNPT Stainless Steel Ball Cone Spring Check Valve
Apollo Valves 6210501 - 1" FNPT Stainless Steel Ball Cone Spring Check Valve
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The APOLLO VALVES 6210501 is a 1 in inline ball cone spring check valve from the 62 Series for general purpose reverse-flow control. It has a stainless steel body with an RPTFE ball cone and seat, EPDM seal, and a 316 stainless steel spring. The valve uses a spring-loaded, center-guided design and has female NPT connections on both ends.
Key features:
- Valve type: Ball cone spring check valve with inline body design for one-way flow control.
- Body material: Stainless steel construction.
- Check mechanism: Ball cone design with RPTFE ball cone and seat material.
- Spring-loaded operation: Supports fast seating action.
- Center guided design: Radial alignment is not needed.
- Connections: 1 in FNPT x FNPT female threaded ends.
- Cracking pressure: 0.5 psi.
- Flow coefficient: Cv 6.
- Flow rate: 6 gpm.
- Pressure ratings: 400 psig CWP max pressure and 150 psi SWP max steam pressure.
- Temperature range: 33 to 350 degrees F.
- Mounting: Can be installed horizontally or vertically.
- Standards: CRN.
