Apollo Valves 7010101 - 1/4" FNPT Bronze Ball Valve Inline
Apollo Valves 7010101 - 1/4" FNPT Bronze Ball Valve Inline
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

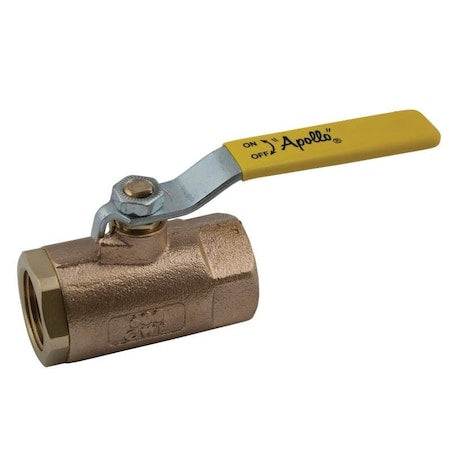

The APOLLO VALVES 7010101 is a manual 2-way ball valve from the 70 Series with a two-piece inline bronze body and standard port design. It has 1/4 in female NPT connections on both sides (FNPT x FNPT) for use in piping systems handling steam and other compatible media. This valve features a chrome plated bronze ball, PTFE seats and seals, a brass blowout-resistant stem, and a lever handle made of PVC and zinc-plated steel. It is rated for 600 PSI CWP, 150 PSI WSP, vacuum service to 29 in Hg, and a temperature range of -20 to 450 degrees F.
Key Features of the APOLLO VALVES 7010101 Ball Valve:
- Valve Type: Manual 2-way ball valve for inline shutoff service.
- Body Material: Bronze body with heavy pattern construction.
- Connection Size: 1/4 in female NPT on both ends.
- Port Style: Standard port design.
- Ball Material: Chrome plated bronze ball.
- Seat and Seal Material: PTFE seats and seals.
- Stem Design: Brass stem with blowout-resistant construction and adjustable packing gland.
- Handle: Yellow lever handle made from PVC and zinc-plated steel; non-locking design.
- Pressure Ratings: 600 PSI CWP and 150 PSI WSP.
- Temperature Range: -20 to 450 degrees F, with 500 degrees F maximum operating temperature listed.
- Standards: MSS SP-110; also listed to ASTM B584-C84400, CRN, ARRA, BABA, and BAA.
- Testing: 100% factory tested.
- Manufacturing: Made in the USA.
