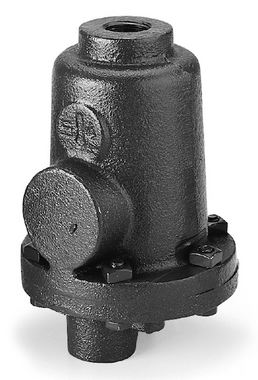

Armstrong 1-LD - Lever-Operated Float Drain Trap, 1/8" Orifice, 121 PSIG Rating
Armstrong 1-LD - Lever-Operated Float Drain Trap, 1/8" Orifice, 121 PSIG Rating
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Designed to safely remove condensate and excess water from boiler and hydronic systems, this free‑floating lever drain trap ensures reliable pressure relief and maintenance of system efficiency. The 1-LD model from Armstrong features a 1/8" orifice capable of handling up to 121 psig, making it ideal for high‑pressure applications.
The lever‑activated float rises with water level, opening the orifice to vent pressure once the preset threshold is reached. When the water drains below the set point, the float drops, closing the valve to prevent backflow and maintain system integrity.
Key System Performance Baselines:
- Pressure Rating: Handles up to 121 psig, suitable for most commercial boiler loops.
- Orifice Size: 1/8" inlet ensures precise flow control and minimizes water hammer.
- Float Design: Free‑floating lever provides quick response to changing water levels.
- Installation Flexibility: Compatible with standard 1/8" pipe threads for easy retrofit.
⚠️ Application Profile: Boiler condensate lines, hydronic heating loops, fire‑tube boiler systems, and high‑pressure steam condensate return.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 1-LD |
| Model Designation | Free Floating Lever Drain Trap |
| Connection Size | 1/8" |
| Maximum Working Pressure | 121 psig |
| Orifice Size | 1/8" |
