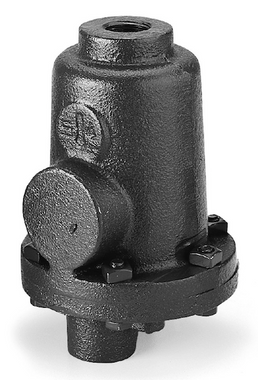

Armstrong 1-LD Free Floating Lever Drain Trap 7/64" Orifice 143 psig
Armstrong 1-LD Free Floating Lever Drain Trap 7/64" Orifice 143 psig
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 1-LD |
| Model Designation | Free Floating Lever Drain Trap |
| Orifice Size | 7/64" |
| Pressure Rating | 143 psig |
| Body Construction | Brass |
Designed to safely discharge condensate and maintain system pressure, this free‑floating lever drain trap ensures reliable removal of water from boilers and hydronic loops. The **1-LD** model from Armstrong provides a 7/64" orifice and handles up to 143 psig, making it ideal for demanding HVAC applications.
The trap features a lever‑actuated, free‑floating mechanism that opens only when pressure exceeds the set point, allowing water to exit while preventing back‑flow and maintaining system integrity.
Key System Performance Baselines:
- Orifice Size: 7/64" for precise flow control.
- Pressure Rating: Certified to 143 psig.
- Lever Design: Free‑floating action eliminates back‑pressure.
- Material Construction: Durable brass body for long‑term reliability.
⚠️Application Profile: Ideal for boiler condensate drains, steam system moisture removal, and hydronic heating loop protection.
