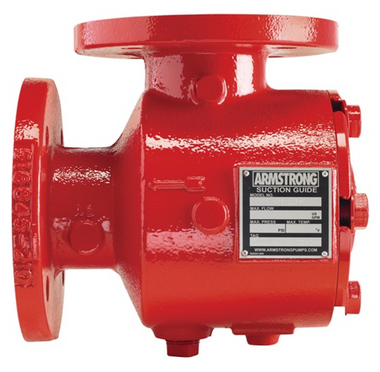

Armstrong 516860-014 SG-22 Suction Diffuser 2 x 2
Armstrong 516860-014 SG-22 Suction Diffuser 2 x 2
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 516860-014 |
| Model Designation | SG-22 |
| Connection Size | 2 x 2 |
Optimizing the suction conditions of your HVAC pumping system is essential for longevity, and the Armstrong 516860-014 SG-22 Suction Diffuser is engineered to provide the necessary flow conditioning. This reliable SG-22 component is designed to reduce space requirements while ensuring uniform flow to the pump impeller, effectively minimizing turbulence that could lead to premature wear or cavitation.
By integrating this suction diffuser directly into the piping assembly, you create a controlled entry environment for the pump. It serves as a dual-purpose device, acting as both a strainer to remove debris and a flow straightener, which eliminates the need for bulky, separate long-radius elbows or additional strainers in tight mechanical rooms.
Key System Performance Baselines:
- Flow Stabilization: Promotes uniform velocity profiles at the pump inlet.
- Debris Filtration: Protects internal pump components from particulate damage.
- Space Efficiency: Combines straightening and straining into a single compact housing.
⚠️ Application Profile: Ideal for commercial hydronic heating and cooling systems, pump suction piping setups, and mechanical room retrofits where installation footprint is restricted.
