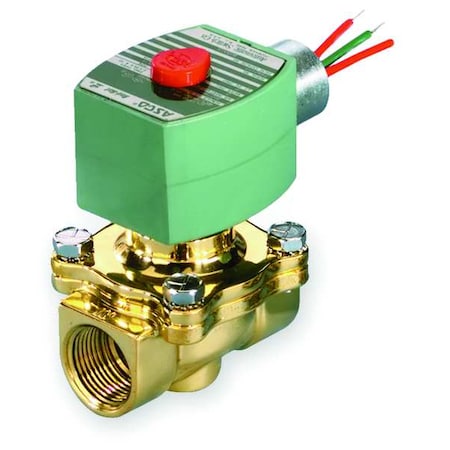

Asco 8030G003 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120 V AC, High Flow, Brass

The ASCO 8030G003 is a 2-way, 2-position, normally closed solenoid valve designed for direct acting operation. It features a brass body with NBR seals and IP66-rated environmental protection (dust/in water ingress) enabling indoor/outdoor operation. Including the coil, it operates on 120V AC at 50 and 60 Hz frequencies, consuming 10.1 watts. Media compatibility: Air, Inert Gas, Water; maximum fluid temperature 200°F and an ambient temperature range of 14°F to 140°F. It has a 3/4 in nominal pipe size with NPTF inlet and outlet connections.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Closed
• - Operation: Direct Acting
• - Body Material: Brass
• - Seal Material: NBR
• - Electrical: 120V AC, 10.1 W, 50/60 Hz
• - Coil Enclosure: Without Junction Box; IP66-rated enclosure
• - Electrical Connection: 1/2 in Conduit Hub
• - IP66-rated environmental protection
• - IP Rating: 66
• - Maximum Ambient Temperature: 140°F; Minimum: 14°F
• - Maximum Fluid Temperature: 200°F
• - Media compatibility: Air, Inert Gas, Water
• - Maximum Operating Pressure Differential: 2 psi (Air/Inert Gas, Water)
• - Minimum Operating Pressure Differential: 0 psi (Air/Inert Gas, Water)
• - Orifice Diameter: 3/4 in
• - Nominal Pipe Size: 3/4 in
• - Connection Type: Inlet and Outlet NPTF threads
• - Mounting Orientation: Vertical
• - Overall Dimensions: Length 2-13/16 in, Width 2-1/4 in, Height 4-1/16 in
• - Valve Type: High Flow
• - Standards: CSA, FM, UL Listed
