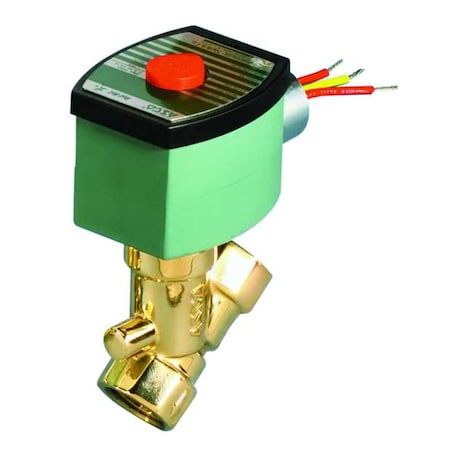

Asco 8030G013 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120 V AC, Diaphragm, Piston
Asco 8030G013 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120 V AC, Diaphragm, Piston
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8030G013 is a pilot-operated, 2-way/2-position solenoid valve designed for controlling the flow of air, inert gases, and water. It features a normally closed valve starting configuration and incorporates both diaphragm and piston valve types. Constructed with a brass body and NBR seal material, this valve's typical applications include dispensing, gas shutoff, tank draining, and vacuum holding. Mounting orientation: Horizontal or Vertical; IP66 rating; NEMA enclosure ratings: 1, 2, 3, 3S, 4, 4X; rated for washdown environments.
Key Features:
- - Valve Design: 2-Way/2-Position, pilot operated
- - Valve Starting Configuration: Normally Closed
- - Valve Type: Diaphragm, Piston
- - Body Material: Brass
- - Seal Material: NBR
- - Nominal Pipe Size: 3/8 in
- - Orifice Diameter: 3/8 in
- - Center Line Pipe Center Size: 3-9/16 in
- - Operating Pressure Differential: Minimum 15 psi, Maximum 15 psi for air/inert gas and water; Minimum 0 psi for light oil
- - Coefficient of Volume (Cv): 1.8
- - Coil Included: Yes; Coil Insulation Class: F; Wattage: 10.1 W; Voltage: 120V AC; Frequency: 50 Hz, 60 Hz
- - Coil Enclosure: Without Junction Box, Watertight
- - Electrical Connections: DIN with 1/2 in Conduit Hub
- - Inlet/Outlet Connection Type: NPTF with NPT thread type
- - Mounting Orientation: Horizontal or Vertical
- - Environmental Rating: Hazardous, Indoor, Outdoor, Washdown; IP Rating: 66; NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
- - Dimensions: Overall Height 4 in; Overall Length 2 in; Overall Width 2 in
- - Includes Seal: Yes
- - Standards: CSA, UL Listed
