Asco 8210G002V - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120 V AC, High Flow, Brass
Asco 8210G002V - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120 V AC, High Flow, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

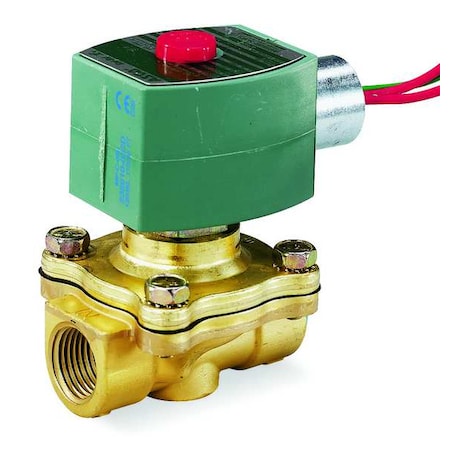

The ASCO 8210G002V is a pilot-operated, normally closed solenoid valve designed to control the flow of air, inert gases, light oil, and water. It features a brass body and includes both the coil and sealing components. The valve operates within an ambient temperature range of 14°F to 140°F and is rated for fluid temperatures up to 180°F. With a nominal pipe size of 1/2 inch and NPTF inlet and outlet connections, it supports a maximum operating pressure differential of 200 psi for air/inert gas, 135 psi for light oil, and 150 psi for water.
Key Features:
- - Valve Design: 2-Way/2-Position with 2-Position operation
- - Orifice Diameter: 5/8 in
- - Valve Type: High Flow
- - Coil Enclosure: IP66 rated; junction box not included
- - Electrical Connection: 1/2 in Conduit Hub
- - Coil Insulation Class: F
- - Voltage: 120V AC
- - Wattage: 6.1 W
- - Response Time: 1 sec
- - Seal Material: FKM
- - IP66-rated enclosure suitable for indoor and outdoor installation
- - Mounting Orientation: Vertical
- - IP Rating: 66
- - Overall Dimensions: Length 3 in, Height 3-15/16 in, Width 2-5/16 in
- - Center Line Pipe Size: 2-13/16 in
