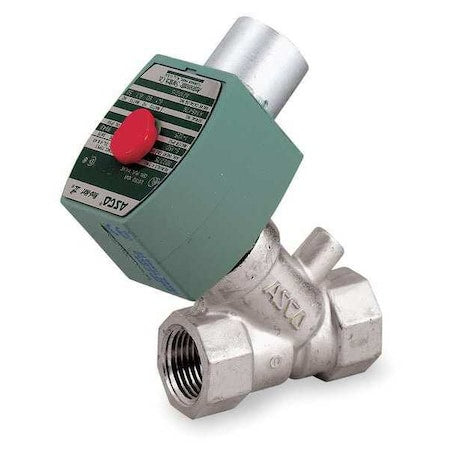

Asco 8210G015 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 24 V DC, High Flow, Brass, NBR

The ASCO 8210G015 is a 2-way, 2-position pilot-operated solenoid valve with a normally closed starting configuration designed to control the flow of air, inert gas, and water. It features a brass body and includes both the coil and sealing components required for installation. The valve is rated for a nominal pipe size of 1/2 inch with NPT thread type connections (inlet and outlet NPTF). It is rated to operate within an ambient temperature range of 14 to 140°F and is rated for fluid temperatures up to 150°F. The valve supports a maximum operating differential pressure of 40 psi for air/inert gas and 125 psi for water, with minimum differentials of 5 psi for each media.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Closed
• - Operation Type: Pilot Operated
• - Body Material: Brass
• - Nominal Pipe Size: 1/2 in with NPT thread type
• - Orifice Diameter: 7/16 in
• - Media Compatibility: Air, Inert Gas, Water
• - Includes Coil: Yes; Includes Seal: Yes
• - Electrical: 24V DC, 11.6 W wattage, 1/2 in Conduit Hub connection
• - Coil Enclosure: Without Junction Box, Watertight
• - Environmental Rating: Indoor, Outdoor; IP Rating: 66
• - Mounting Orientation: Vertical
• - Response Time: 1 second
• - Dimensions: Overall Height 3-3/8 in, Length 3-1/4 in, Width 2-5/16 in
• - Valve Starting Configuration: Normally Closed
• - Seal Material: NBR
• - Maximum Ambient Temperature: 140°F; Minimum Ambient Temperature: 14°F
• - Maximum Fluid Temperature: 150°F
• - Maximum Operating Pressure Differential: 40 psi (Air/Inert Gas), 125 psi (Water)
• - Minimum Operating Pressure Differential: 5 psi (Air/Inert Gas, Water)
• - Standards: UL Listed
