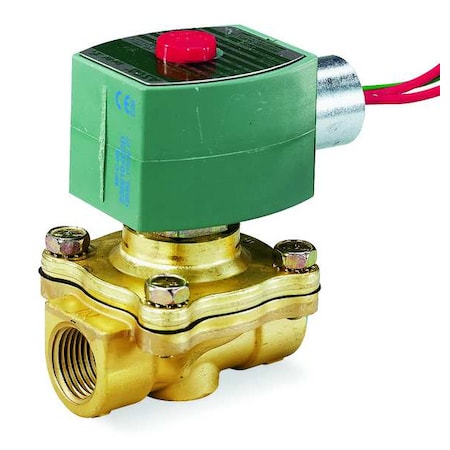

Asco 8210G034 - Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 120 V AC, High Flow, Brass, NBR
Asco 8210G034 - Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 120 V AC, High Flow, Brass, NBR
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8210G034 is a pilot operated solenoid valve designed for automated control of fluid and gas flow through a 2-way, 2-position valve configuration. It features a normally open starting position and a high flow valve design, enabling fast switching; Switching time: approximately 1 second. The valve body is constructed from brass and is equipped with an NBR seal. It operates on 120V AC power at 50/60 Hz frequency and includes the coil necessary for actuation. Vertical mounting orientation; NPTF inlet and outlet connections are compatible with standard piping. Operating environment: indoor/outdoor use per IP66-rated enclosure; ingress protection: IP66 per enclosure rating.
Key Features:
- - Valve Design: 2-Way/2-Position with Normally Open configuration
- - Operation Type: Pilot Operated for controlled flow management
- - Body Material: Brass with NBR (Buna-N) seals
- - Electrical: 120V AC, 10.1 W power consumption, 1/2 in conduit hub connection
- - Dimensions: 4-3/8 in height, 2-3/4 in length, 2-5/16 in width
- - Pressure Ratings: Maximum 150 psi differential for air, inert gas, and water; 125 psi for light oil; minimum 0 psi differential for all listed media
- - Media Compatibility: Air, inert gas, light oil, and water
- - Temperature Range: Ambient 14°F to 140°F; fluid max 180°F
- - Environmental/enclosure ratings: IP66; NEMA 1, 2, 3, 3S, 4, 4X
- - Coil enclosure: watertight; external junction box not required
- - Orifice Diameter: 5/8 in
- - Includes: Coil and sealing components
