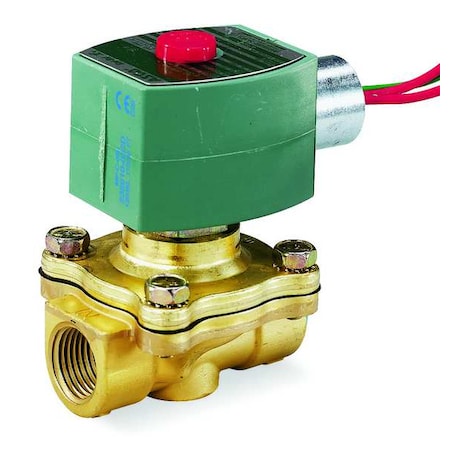

Asco 8210G054 - Solenoid Valve, Two-Way, 110/120 V AC, Normally Closed, 1 in NPTF Pipe, Watertight, 5-125 psi Water

The ASCO 8210G054 is a pilot-operated, normally closed solenoid valve designed for controlling the flow of air, inert gas, light oil, and water. Constructed with a brass body, it features NPTF inlet and outlet connections with a 1-inch nominal pipe size and a 1-inch orifice diameter. This 2-way, 2-position valve provides automated flow control through an energized coil. Actuation: energized coil for remote operation. Environmental protection ratings: IP66; NEMA 1, 2, 3, 3S, 4, 4X and operates within an ambient temperature range of 14°F to 140°F, handling fluid temperatures up to 180°F.

Key Features:

• - Valve Design: 2-Way/2-Position, Pilot Operated, Normally Closed
• - Media Compatibility: Air, Inert Gas, Light Oil, Water
• - Body Material: Brass
• - Connection Types: Inlet and Outlet NPTF threaded, 1 in nominal pipe size
• - Operating Pressure Differential: Maximum 150 psi for air/inert gas; 125 psi for light oil and water; minimum 0 psi
• - Coil Included: Yes, 16.1 W power consumption, Class F insulation, 120V AC at 60 Hz frequency
• - Coil enclosure: IP66-rated; no external junction box required
• - Electrical Connections: 1/2 in Conduit Hub
• - Mounting Orientation: Vertical
• - Dimensions: Overall length 3-3/4 in, width 3-1/4 in, height 5-1/8 in
• - Response Time: 1 second
• - Seal Material: NBR (Buna-N)
• - Environmental protection ratings: IP66; NEMA 1, 2, 3, 3S, 4, 4X
• - Includes Seal: Yes
• - Standards: UL Listed
