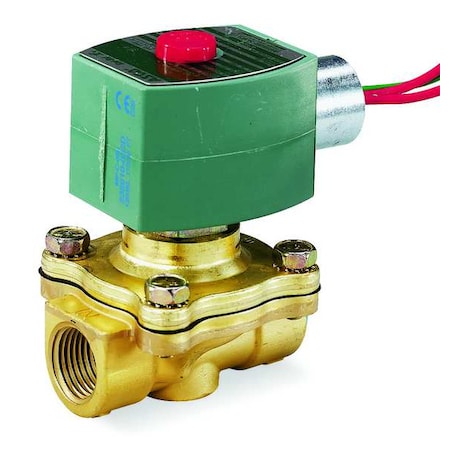

Asco 8210G055 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 120 V AC, High Flow, Brass
Asco 8210G055 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 120 V AC, High Flow, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8210G055 is a pilot-operated, normally closed solenoid valve designed for controlling the flow of air, inert gas, light oil, and water in various industrial and commercial systems. It features a 2-way/2-position valve design with a high-flow orifice diameter of 1-1/8 inches and a nominal pipe size of 1-1/4 inches. The valve body is constructed from brass and includes a coil and seal, enabling automated flow control by energizing or de-energizing the solenoid coil. It supports operation within ambient temperatures from 14°F to 140°F and fluid temperatures up to 180°F, with a maximum operating pressure differential of 150 psi for air and inert gases, and 125 psi for water and light oil.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Valve Type: High Flow, Pilot Operated
- - Body Material: Brass
- - Media Compatibility: Air, Inert Gas, Light Oil, Water
- - Orifice Diameter: 1-1/8 in; Nominal Pipe Size: 1-1/4 in
- - Operating Pressure Differential: 0 to 150 psi (Air/Inert Gas), 0 to 125 psi (Light Oil, Water)
- - Ambient Temperature Range: 14°F to 140°F; Fluid Temperature Maximum: 180°F
- - Coil: Included; Wattage: 16.1 W at 120V AC and 60 Hz frequency
- - Electrical Connections: 1/2 in Conduit Hub; Coil enclosure: Junction box not included; enclosure rated watertight
- - Enclosure protection rating: IP66; suitable for outdoor use; NEMA Ratings: 1, 2, 3, 3S, 4, 4X; IP Rating: 66
- - Seal Material: NBR; Includes Seal
- - Mounting Orientation: Vertical
- - Dimensions: Overall Height 5-1/2 in, Length 3-11/16 in, Width 3-1/4 in
- - Response Time: 1 second
- - Thread Type: NPT; Inlet and Outlet Connection Type: NPTF
- - Standards: UL Listed
