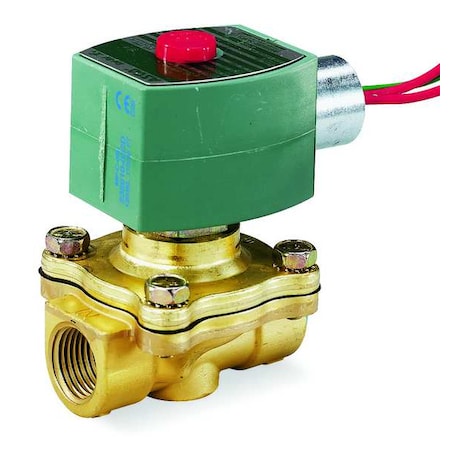

Asco 8210G094LF 24/DC - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 24 V DC, High Flow, Brass, NBR
Asco 8210G094LF 24/DC - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 24 V DC, High Flow, Brass, NBR
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8210G094LF 24/DC is a pilot-operated, normally closed 2-way/2-position solenoid valve designed for controlling the flow of air, inert gases, and water. It features a brass body and uses an NBR seal material. This valve operates at 24V DC with a wattage of 10.1 W and is intended for use in air, inert gases, and water control systems within the specified operating pressure and temperature ranges. Vertical mounting is supported by the mounting interface. This valve enables automated control of fluid systems with a response time of approximately 1 second.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed configuration
- - Material: Brass valve body with NBR seals
- - Electrical: 24V DC voltage, 10.1 W power consumption, with 1/2 in conduit hub electrical connection
- - Connections: 1/2 in nominal pipe size, NPT thread type with NPTF inlet and outlet connections
- - Operating Pressure: Maximum 40 psi for air/inert gas and 150 psi for water; minimum 0 psi differential for both media
- - Temperature Ratings: Ambient temperature range 14°F to 140°F; maximum fluid temperature 180°F
- - Orifice Size: 5/8 in diameter with a coefficient of volume (Cv) of 4
- - Construction: Includes coil and seals; coil insulation class F; coil enclosure is watertight
- - Environmental and Protection Ratings: Rated for indoor and outdoor use with IP65 and NEMA 1, 2, 3, 3S, 4, 4X ratings
- - Dimensions: Overall length 2-5/16 in, width 2-3/4 in, height 3-27/32 in
- - Response Time: Approximately 1 second
- - Certification: CSA and UL standards conformance (certification details available in product documentation)
