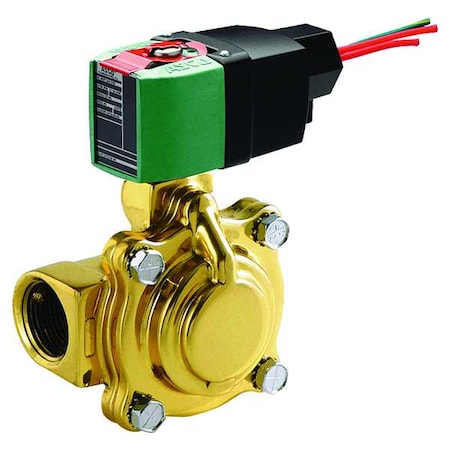

Asco 8210P008 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 100 V to 240 V AC/DC, Brass
Asco 8210P008 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 100 V to 240 V AC/DC, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8210P008 is a pilot-operated, 2-way/2-position solenoid valve with a normally closed configuration. Controls flow for air, inert gas, light oil, and water within differential pressure ratings: 350 psi (air/inert gas), 100 psi (light oil), 150 psi (water). The valve body is constructed from brass and features NPT inlet and outlet connections with a nominal pipe size of 1-1/4 inches and a center line pipe center size of 2 inches. Coil and seals included. Mounting orientation: vertical. The coil has an H insulation class and operates at 100V to 240V AC/DC with a frequency of 60 Hz. Response time: 1 second. Operating temperatures: ambient 14-140°F; fluid temperatures up to 180°F.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation Type: Pilot Operated
- - Body Material: Brass
- - Connection Types: Inlet and outlet NPT threads, nominal pipe size 1-1/4 in
- - Flow Capacity: Cv of 15 with 1-1/8 in orifice diameter
- - Pressure Ratings: Maximum differential 350 psi (air/inert gas), 100 psi (light oil), 150 psi (water); minimum differential 5 psi for all media
- - Electrical: Coil wattage: 1.5 W; coil included; 100V to 240V AC/DC, 60 Hz frequency, and 1/2 in conduit hub connections
- - Enclosure ratings: IP66; NEMA 1, 2, 3, 3S, 4, 4X
- - Mounting orientation: Vertical
- - Seal Material: NBR
- - Dimensions: Overall length 4 in, height 5-5/8 in, width 3-3/4 in
