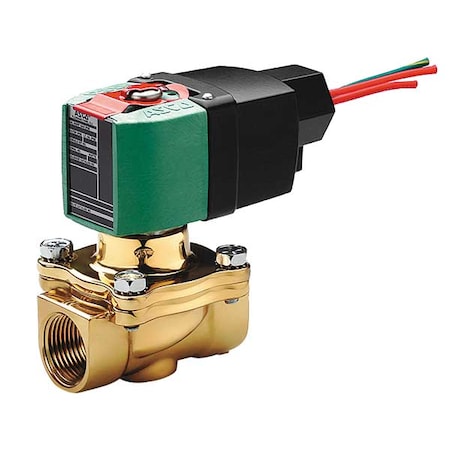

Asco 8210P035 - Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe Size, 100 V to 240 V AC/DC, High Flow
Asco 8210P035 - Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe Size, 100 V to 240 V AC/DC, High Flow
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8210P035 is a pilot-operated solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. Featuring a 2-way/2-position configuration with a normally open starting position, this valve operates within a temperature range of 14°F to 140°F ambient and maximum fluid temperature: 180°F. Body material: Brass; Seal material: NBR; Media compatibility: Air, Inert Gas, Light Oil, Water; Environmental rating: Corrosive, Hazardous, Indoor, Outdoor. The valve includes the coil and sealing components necessary for installation and operates with a 100V to 240V AC/DC power supply at 60 Hz frequency.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Open
- - Operation Type: Pilot Operated
- - Body Material: Brass
- - Seal Material: NBR
- - Media Compatibility: Air, Inert Gas, Light Oil, Water
- - Maximum Fluid Temperature: 180°F
- - Maximum Ambient Temperature: 140°F; Minimum Ambient Temperature: 14°F
- - Maximum Operating Pressure Differential: 350 psi (Air/Inert Gas), 150 psi (Water), 125 psi (Light Oil)
- - Electrical: 100V to 240V AC/DC, 60 Hz, 1.5 W Power Consumption
- - Coil Enclosure: Watertight, Without Junction Box
- - Electrical Connections: 1/2 in Conduit Hub
- - Mounting Orientation: Vertical
- - Orifice Diameter: 3/4 in; Nominal Pipe Size: 3/4 in; Center Line Pipe Size: 2 in
- - Dimensions: Overall Height 4-9/16 in, Overall Length 4 in, Overall Width 2-5/16 in
- - Response Time: 1 sec
- - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
- - IP Rating: 66; NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
- - Includes Coil: Yes; Includes Seal: Yes
- - Thread Type: NPT (Inlet and Outlet); Connection Type: NPT
- - Standards: UL Listed
