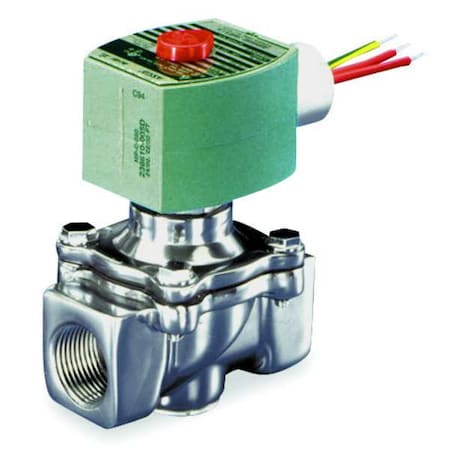

Asco 8214G020 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120 V AC, Pilot Operated, NBR
Asco 8214G020 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120 V AC, Pilot Operated, NBR
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8214G020 is a pilot-operated, normally closed solenoid valve designed for on-off control of fuel gas in commercial and industrial gas burners. It features a double solenoid actuator and high flow gas shut-off capability with a test port. Constructed with an aluminum body and NBR seal material, the valve supports fluid temperatures up to 125°F. Ambient temperature range: -40°F to 125°F. It includes the necessary coil and sealing components for installation. Environmental ratings: Indoor, Outdoor, Hazardous. It uses 120V AC power at 60 Hz frequency. Its design facilitates vertical mounting with NPTF inlet and outlet connections sized for a nominal 1/2 in pipe size.
Key Features:
- - Valve Design: 2-Way/2-Position with Normally Closed starting configuration
- - Operating Pressure Differential: 0 to 5 psi for fuel gas, air/inert gas, and water
- - Orifice Diameter: 3/4 in
- - Coefficient of Volume (Cv): 4.4
- - Gas Capacity: 238,500 BtuH
- - Coil Enclosure: General Purpose, Watertight, without junction box
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in conduit
- - Ambient temperature range: -40°F to 125°F
- - Overall Dimensions: 4-1/32 in height, 2-3/4 in length, 2-3/8 in width
- - Response Time: 1 second
- - Includes: Coil and seal
- - Environmental ratings: Indoor, Outdoor, Hazardous
- - Mounting Orientation: Vertical
- - Standards: CSA, FM, UL certified
- - Wattage: 17.1 W
