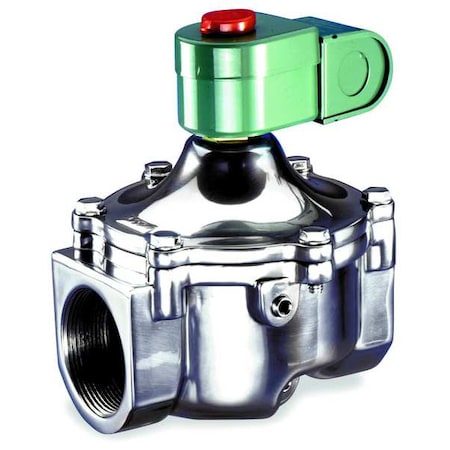

Asco 8215B070CSA - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120 V AC, High Flow, NBR

ASCO 8215B070CSA is a 2-way, 2-position direct-acting solenoid valve with a normally closed configuration. Constructed with an aluminum body and NBR seals, it provides fast and automated fluid control with a response time of 120 milliseconds. The valve includes a coil and is rated for operation within an ambient temperature range of 14°F to 140°F and fluid temperatures up to 125°F. Environmental rating: Indoor/Outdoor.

Key Features:

• - Valve Design: 2-Way/2-Position with Normally Closed configuration
• - Valve Type: High Flow
• - Body Material: Aluminum
• - Seal Material: NBR
• - Orifice Diameter: 1-5/8 in
• - Nominal Pipe Size: 1-1/2 in
• - Connection Types: Inlet and Outlet NPTF threads with NPT thread type
• - Coil: Included with general purpose enclosure and Class F insulation
• - Electrical Connection: 1/2 in Conduit with 18 in Leads
• - Voltage: 120V AC at 50/60 Hz
• - Wattage: 15.4 W
• - Flow Coefficient (Cv): 35
• - Operating Pressure Differential: 0 to 25 psi for air/inert gas and water
• - Ambient Temperature Range: 14°F to 140°F; Maximum Fluid Temperature: 125°F
• - Environmental rating: Indoor/Outdoor
• - Response time: 120 milliseconds
• - Dimensions: Overall Height 6-13/16 in; Length 5 in; Width 5-3/8 in
• - Standards: CSA, UL
• - IP Rating: IP65; NEMA Enclosure Rating: 1
