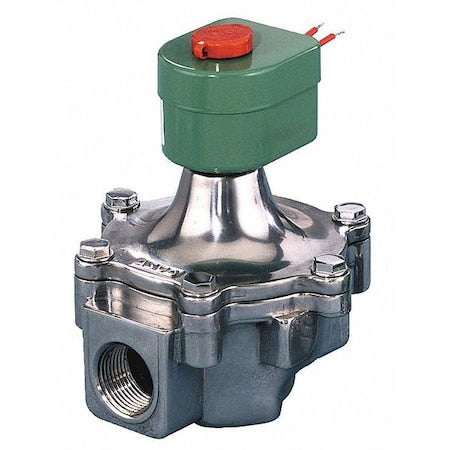

Asco 8215G020B - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120 V AC, High Flow, Aluminum
Asco 8215G020B - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120 V AC, High Flow, Aluminum
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8215G020B is a direct-acting, 2-way/2-position solenoid valve designed for air and vacuum service. It is constructed with an aluminum body and features a normally closed valve starting configuration. This solenoid valve includes a coil and sealing components, providing automated control by using an energized coil to open or close the flow path. It supports a nominal pipe size of 1/2 inch with NPTF inlet and outlet connections and operates at 120V AC with a coil power consumption of 10.1 W. The valve has an orifice diameter of 3/4 inch and a flow coefficient (Cv) of 4.4; Maximum fluid temperature: 125°F; Ambient temperature range: 14°F to 140°F. It has an IP65-rated coil enclosure; intended for indoor and outdoor use; hazardous-location suitability not specified. The valve’s response time is 120 milliseconds and it has a maximum operating pressure differential of 50 psi for air, inert gas, and water.
Key Features:
- - Valve Type: High Flow, Direct Acting
- - Design: 2-Way/2-Position with Normally Closed starting configuration
- - Body Material: Aluminum
- - Connections: 1/2 in NPTF inlet and outlet
- - Electrical: 120V AC, 60 Hz, 10.1 W coil wattage, 18 in wire leads
- - Orifice Diameter: 3/4 in; Cv (flow coefficient): 4.4
- - Temperature Ratings: Fluid max 125°F; ambient 14°F to 140°F
- - Environmental rating: Indoor and Outdoor use; hazardous-location suitability not specified
- - Coil Enclosure: Watertight without junction box; Insulation Class F
- - Maximum Operating Pressure Differential: 50 psi for air/inert gas and water
- - Includes coil and seals
- - Response Time: 120 msec
- - Media Compatibility: Air, Vacuum, Fuel Oil, Gas
- - IP Rating: IP65
- - Physical Dimensions: Length 5 in; Width 5-3/8 in; Height 6-27/32 in
- - Certifications: CSA, FM, UL
