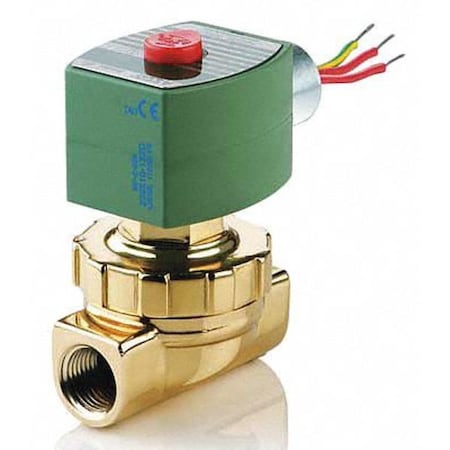

Asco 8220G409 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120 V AC, Diaphragm, Piston

The ASCO 8220G409 is a pilot-operated, 2-way solenoid valve designed for controlling hot water and steam flow in various fluid systems. Constructed with a brass body and featuring diaphragm valve design, it operates with a normally closed configuration. This valve provides automated flow control by energizing an included coil to actuate the diaphragm, operating with hot water up to 210°F and steam up to 353°F. It is suited for use in environments with ambient temperatures ranging from 14°F to 140°F.

Key Features:

• - Valve Type: Diaphragm and Piston design
• - Valve Ways/Positions: 2-Way, 2-Position
• - Connections: Inlet and outlet with NPTF threads, nominal pipe size 3/4 in
• - Flow Capacity: Cv of 8.8 with a 3/4 in orifice diameter
• - Operating Pressure Differential: Minimum 5 psi and maximum 150 psi for hot water; minimum 5 psi and maximum 125 psi for steam; maximum 210 psi for light oil; maximum 150 psi for air/inert gas
• - Seal Materials: EPDM and PTFE
• - Electrical: Includes coil rated 120V AC at 50/60 Hz, 10.1 W power consumption, 1/2 in conduit with 18 in leads
• - Coil Enclosure: Without junction box, watertight
• - Environmental Rating: Suitable for indoor, outdoor, and washdown environments
• - Dimensions: Overall length 2-7/8 in, height 4-7/32 in, width 2-27/32 in
• - Standards: CSA and UL Listed
