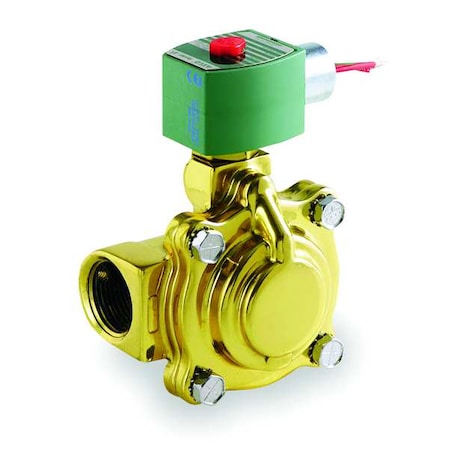

Asco 8221G009 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 120 V AC, Slow-Closing, NBR

The ASCO 8221G009 is a pilot-operated, slow-closing solenoid valve for controlling the flow of water and light oil. It features a normally closed 2-way, 2-position valve design with a brass body and NBR seals. This valve includes the coil and sealing components, providing operational control at 120V AC with a coil wattage of 6.1 W. It is rated for automated flow control in corrosive indoor or outdoor environments. The valve supports a maximum fluid temperature of 180°F and operates within a pressure range of 5 to 150 psi differential for water and hot water.

Key Features:

• - Valve Design: 2-Way/2-Position; Normally Closed configuration
• - Body Material: Brass with NBR (Buna-N) seal material
• - Connection Type: Inlet and outlet with NPTF threads, 1-1/4 in nominal pipe size
• - Orifice Diameter: 1-1/8 in with a Cv flow coefficient of 3
• - Electrical: 120V AC supply, 6.1 W coil power, Class F coil insulation
• - Coil Enclosure: Watertight without junction box; includes 1/2 in conduit with 18 in leads
• - Environmental rating limited to corrosive and hazardous conditions, indoors or outdoors
• - Operating Pressure Differential: 5 psi minimum to 150 psi maximum for water and hot water
• - Dimensions: Overall length 3-11/16 in, width 3-9/16 in, height 5-9/16 in
• - Standards: CSA and UL Listed compliance
• - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
