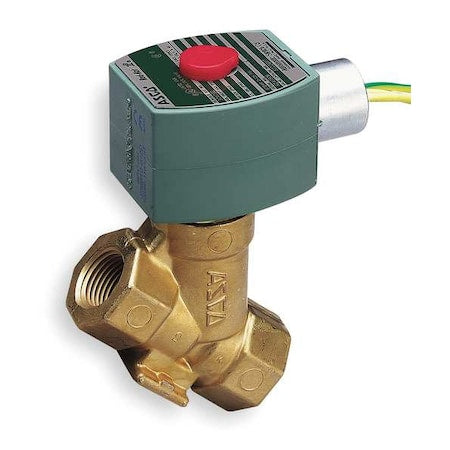

Asco 8222G047 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120 V AC, High Temperature

The ASCO 8222G047 is a pilot-operated, 2-way, 2-position solenoid valve designed for controlling the flow of steam in various equipment such as autoclaves, commercial laundry, kitchen equipment, molding machines, and steam sterilizers. It features a diaphragm valve design with a normally closed configuration, enabling the valve to remain closed until electrically energized. The valve body is constructed of brass and incorporates PTFE seals, rated for steam temperatures up to 353°F and differential pressure up to 135 psi.

Key Features:

• - Nominal Pipe Size: 1/2 in with 1/2 in orifice diameter
• - Connection Types: NPTF inlet and outlet threaded ports
• - Operating Ambient Temperature Range: 32 to 125 Degrees F
• - Coil: Included, class H insulation, 120V AC, 50/60 Hz electrical frequency
• - Coil Enclosure: Watertight, without junction box
• - Electrical Connections: 1/2 in conduit with 18 in leads
• - Valve Body Style: Y-Shape
• - Dimensions: Overall height 4-13/16 in, length 2-3/4 in, width 1-15/16 in
• - Flow Coefficient (Cv): 3.6
• - Valve Type: High Temperature
• - Seal Material: PTFE
• - Standards: CSA, UL Listed
