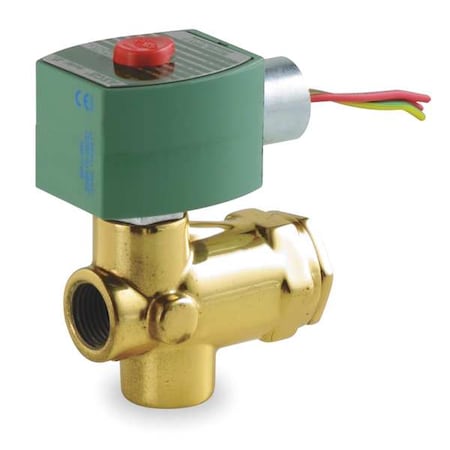

Asco 8223G005 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120 V AC, High Pressure, Brass
Asco 8223G005 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120 V AC, High Pressure, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8223G005 is a 2-Way/2-Position, Normally Closed solenoid valve designed for pilot-operated control of air, inert gas, light oil, and water. Constructed with a brass valve body and NBR seals. Remote actuation is automated for regulated flow. Ambient operating temperature range is 14°F to 140°F; maximum fluid temperature is 200°F. It features NPTF inlet and outlet connections with a nominal pipe size of 3/4 inch and an orifice diameter of 3/4 inch. The valve is compatible with a maximum operating pressure differential of 750 psi and requires a minimum pressure differential of 25 psi across air, inert gas, light oil, and water media. Environmental rating: IP66; CSA certification.
Key Features:
- - Valve Design: 2-Way/2-Position with Normally Closed starting configuration
- - Operation Type: Pilot Operated
- - Body Material: Brass
- - Seal Material: NBR
- - Nominal Pipe Size: 3/4 in; Orifice Diameter: 3/4 in; Center Line Pipe Size: 3-1/4 in
- - Maximum Operating Pressure Differential: 750 psi (Air/Inert Gas, Light Oil, Water)
- - Minimum Operating Pressure Differential: 25 psi (Air/Inert Gas, Light Oil, Water)
- - Voltage: 120V AC; Wattage: 17.1 W
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Coil Enclosure: Without Junction Box, Watertight; Coil Insulation Class: F; Includes Coil: Yes
- - Environmental Rating: IP66; CSA Certification; NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
- - Dimensions: Overall Height 5 in; Length 3-5/8 in; Width 2 in
- - Valve Type: High Pressure; Valve Ways: 2-Way; Valve Positions: 2-Position
- - Includes Seal: Yes
- - Thread Type: NPT; Inlet and Outlet Connection Type: NPTF
