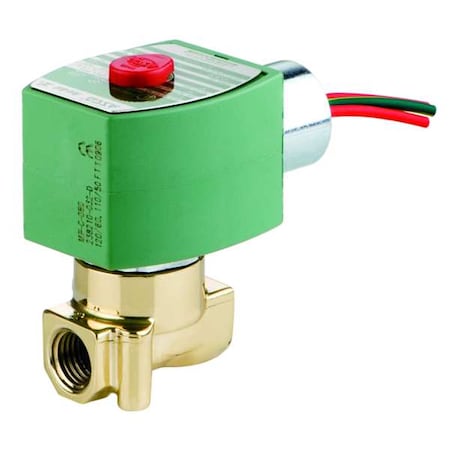

Asco 8262H002 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 24 V AC, High Flow, Brass, NBR
Asco 8262H002 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 24 V AC, High Flow, Brass, NBR
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8262H002 Solenoid Valve is a direct-acting, normally closed 2-way/2-position electromechanical valve designed to control the flow of liquids and gases via an energized coil actuator. Constructed with a brass body and equipped with an NBR seal, this valve supports a nominal pipe size of 1/8 inch and uses NPTF threaded inlet and outlet connections. It operates within an ambient temperature range of -13°F to 131°F and can handle fluid temperatures up to 180°F. Compatible media: air, ammonia, biodiesel fuel, fuel oil, inert gases, light oil, liquid propane gas, natural gas, oxygen, steam, and water. The valve includes the coil and seal as part of the assembly and can be mounted in horizontal or vertical orientations. Its compact size features an overall length of 2-7/8 inches, height of 2-27/32 inches, and width of 1-11/16 inches.
Key Features:
- - Operation Type: Direct Acting
- - Valve Design: 2-Way/2-Position
- - Valve Starting Configuration: Normally Closed
- - Body Material: Brass
- - Seal Material: NBR (Buna-N)
- - Nominal Pipe Size: 1/8 in
- - Orifice Diameter: 1/8 in
- - Inlet and Outlet Connection Type: NPTF threads
- - Coil Enclosure: watertight; no junction box included
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Voltage: 24V AC
- - Wattage: 6.1 W
- - Coil Insulation Class: F
- - Ambient Temperature Range: -13°F to 131°F
- - Fluid Temperature Maximum: 180°F
- - Operating Pressure Differential Maximums: 185 psi for Air/Inert Gas and Water; 120 psi for Light Oil
- - Operating Pressure Differential Minimums: 0 psi for Air/Inert Gas, Light Oil, and Water
- - Response Time: 1 second
- - Includes: Coil and Seal
- - Suitable Mounting Orientation: Horizontal or Vertical
- - Valve Type: High Flow
- - IP Rating: 66
