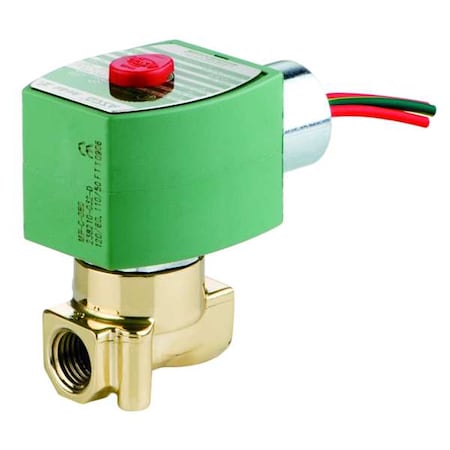

Asco 8262H022 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120 V AC, High Flow, Brass
Asco 8262H022 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120 V AC, High Flow, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8262H022 is a 2-way, 2-position direct acting solenoid valve with a normally closed starting configuration, designed to control the flow of liquids and gases via an energized coil that moves a plunger to open or close the valve. Constructed with a brass body, it includes the coil and sealing components required for operation. Designed for use with liquids and gases within the rated operating ranges defined in this product data sheet, it provides flow control within the rated operating conditions specified in this data sheet.
Key Features:
- - Nominal Pipe Size: 1/4 in
- - Orifice Diameter: 1/8 in
- - Valve Design: 2-Way/2-Position
- - Valve Starting Configuration: Normally Closed
- - Operating Pressure Differential Maximum: 185 psi Air/Inert Gas, 90 psi Light Oil, 180 psi Water
- - Operating Pressure Differential Minimum: 0 psi Air/Inert Gas, Light Oil, Water
- - Fluid Temperature Maximum: 180°F
- - Ambient Temperature Range: 14 to 131 Degrees F
- - Coil Enclosure: Without Junction Box, Watertight
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Voltage: 120V AC
- - Wattage: 6.1 W
- - Response Time: 1 sec
- - Environmental Rating: Indoor and outdoor use; IP66; compatibility with corrosive or hazardous environments not specified.
- - IP Rating: 66
- - Mounting Orientation: Horizontal or Vertical
- - Body Material: Brass
- - Seal Material: NBR
- - Inlet and Outlet Connection Type: NPTF with NPT threads
- - Includes Coil: Yes
- - Includes Seal: Yes
- - Valve Type: High Flow
- - Frequency: 50 Hz, 60 Hz
- - Standards: CSA, UL Listed
- - Overall Dimensions: Length 1-9/16 in, Width 1-11/16 in, Height 2-31/32 in
