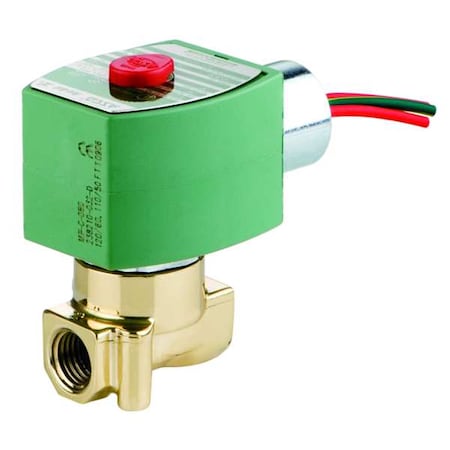

Asco 8262H129 - Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/8 in Pipe Size, 120 V AC, High Flow, Brass, NBR

The ASCO 8262H129 is a direct-acting, normally open solenoid valve designed to control the flow of air, inert gas, light oil, and water. Constructed with a brass body and equipped with an NBR seal, this valve operates with a 1/8-inch orifice diameter and a nominal pipe size of 1/8 inch. It includes a coil rated at 120V AC, 60 Hz frequency, with a wattage of 17.1 W, and features electrical connections via 1/2 inch conduit with 18-inch leads. The valve supports horizontal or vertical mounting orientations and is rated for ambient temperatures as low as -13°F and fluid temperatures up to 180°F. Response time: 1 second; Center Line Pipe Size: 2-11/16 inches.

Key Features:

• - Valve Design: 2-Way/2-Position with Normally Open configuration
• - Operation Type: Direct Acting
• - Body Material: Brass with NBR sealing material
• - Orifice Diameter: 1/8 in; Nominal Pipe Size: 1/8 in
• - Maximum Operating Pressure Differential: 160 psi (Air/Inert Gas), 70 psi (Light Oil), 145 psi (Water)
• - Electrical: 120V AC, 60 Hz; Wattage: 17.1 W; Coil Inclusion: Yes
• - Coil enclosure: IP66-rated; watertight; no junction box
• - Electrical Connections: 1/2 in Conduit with 18 in Leads
• - Mounting Orientation: Horizontal or Vertical
• - Dimensions: Overall Height 3 in; Length 1-3/16 in; Width 2-1/16 in; Center Line Pipe Center Size 2-11/16 in
• - IP Rating: 66; NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
