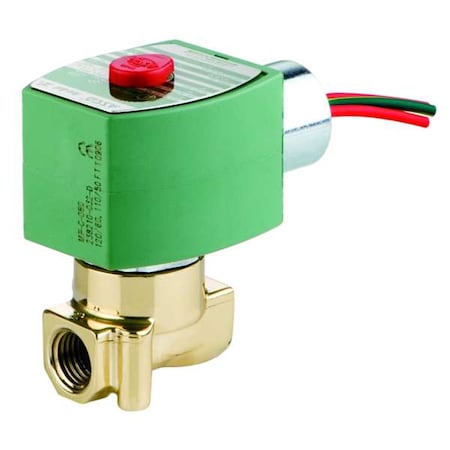

Asco 8262H202 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 24 V DC, High Flow, Brass, NBR
Asco 8262H202 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 24 V DC, High Flow, Brass, NBR
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8262H202 is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration designed for controlling the flow of air, inert gases, light oil, and water. It features a brass body and an orifice diameter of 5/32 inch. The valve includes a coil with Class H insulation operating at 24V DC and consumes 10.1 watts. The valve is rated for horizontal or vertical mounting. IP66 rating provides dust and water protection; environmental suitability beyond IP66 is not specified. It is certified to CSA and UL standards.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Body Material: Brass with NBR seal
- - Operating Voltage: 24V DC, 10.1 W coil power consumption
- - Media Compatibility: Air, Inert Gases, Light Oil, Water
- - Operating Pressure Differential: 0 to 65 psi air/inert gas, 0 to 63 psi light oil and water
- - Temperature Ratings: Ambient 14°F to 140°F; Fluid Maximum 180°F
- - Connections: Inlet and Outlet NPTF threads, Nominal Pipe Size 1/4 in
- - Mounting Orientation: Horizontal or Vertical
- - Coil Enclosure: IP66-rated for ingress protection; without junction box; Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Dimensions (HxLxW): 3-1/8 in x 1-9/16 in x 1-15/16 in
- - Response Time: 1 second
- - Environmental and Construction Ratings: IP66; protection against dust and water; does not imply suitability for corrosive or hazardous environments beyond IP66
- - Standards: CSA, UL Listed
