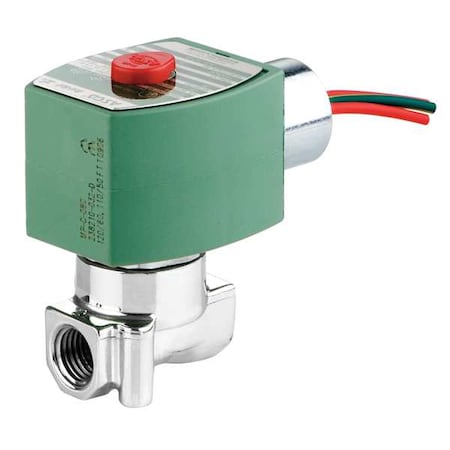

Asco 8262H230 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120 V AC, High Flow, NBR

The ASCO 8262H230 is a 2-way, 2-position solenoid valve with a normally closed starting configuration, designed for controlling the flow of liquids and gases. It operates via a direct-acting mechanism using an energized coil to open or close its flow path. Compatible with air, inert gases, light oil, and water within specified operating conditions. It includes the coil and sealing components required for operation and is constructed with a stainless steel body and NBR seals. The valve supports mounting in either horizontal or vertical orientations and features a coil enclosure that is IP66-rated; NEMA 1, 2, 3, 3S, 4, 4X provide environmental protection for indoor and outdoor use.

Key Features:

• - Nominal Pipe Size: 1/4 in with NPT threaded inlet and outlet connections (NPTF type)
• - Center Line Pipe Center Size: 2-13/16 in
• - Operating Pressure Range: 0 to 90 psi for air/inert gas, light oil, and water
• - Coil: Includes coil with Class F insulation, 120V AC voltage, 50/60 Hz frequency, and 17.1 W power consumption
• - Orifice Diameter: 9/32 in
• - Response Time: Approximately 1 second
• - Enclosure Rating: IP66 with NEMA 1, 2, 3, 3S, 4, 4X ratings for electrical and environmental protection
• - Enclosure ratings IP66 and NEMA 1, 2, 3, 3S, 4, 4X provide environmental protection for indoor and outdoor use
• - Overall Dimensions: Length 1-9/16 in, Width 1-15/16 in, Height 3-1/8 in
• - Valve Type: High Flow, direct acting
