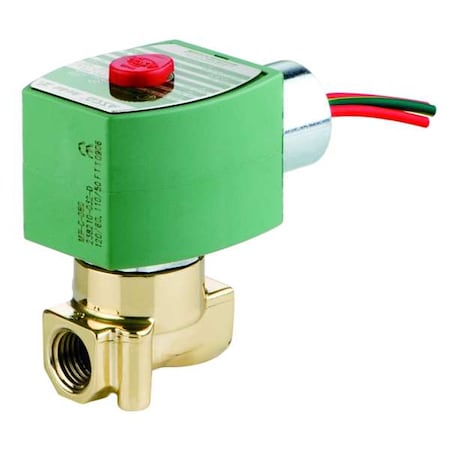

Asco 8262H232 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120 V AC, High Flow, Brass

The ASCO 8262H232 solenoid valve is a direct acting, normally closed, 2-way/2-position valve designed for controlling the flow of air, inert gas, light oil, and water. It includes an coil and sealing components, allowing automated actuation through an energized solenoid. Suitable for installation in either horizontal or vertical orientations, it operates within an ambient temperature range of 14°F to 140°F and can handle fluid temperatures up to 180°F. Valve body material: Brass; media compatibility: Air, Inert Gas, Light Oil, Water.

Key Features:

• - Valve Design: 2-Way/2-Position with Normally Closed starting configuration
• - Valve Operation: Direct Acting
• - Media Compatibility: Air, Inert Gas, Light Oil, Water
• - Maximum Operating Pressure Differentials: 340 psi (Air/Inert Gas), 215 psi (Light Oil), 300 psi (Water)
• - Nominal Pipe Size: 1/4 in with NPTF inlet and outlet connections, thread type NPT
• - Orifice Diameter: 1/8 in
• - Coil: Included, 10.1 W wattage, Class F insulation, 120V AC voltage, 50/60 Hz frequency
• - Coil Enclosure: Without Junction Box, Watertight
• - Electrical Connections: 1/2 in Conduit with 18 in Leads
• - Seal Material: NBR
• - Environmental Use: Indoor or outdoor use; IP66-rated (IP66)
• - Dimensions: 3-1/8 in height, 1-9/16 in length, 1-15/16 in width
• - Response Time: 1 sec
• - Center Line Pipe Size: 2-13/16 in
• - Includes Seal: Yes
• - Standards: CSA, UL Listed
• - IP Rating: 66
• - Mounting Orientation: Horizontal or Vertical
