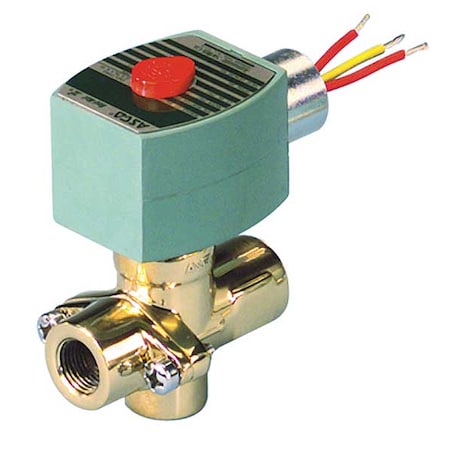

Asco 8267G019 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120 V AC, Self-Cleaning, Brass

The ASCO - 8267G019 is a 2-way, 2-position normally closed solenoid valve designed for controlling the flow of steam, water, and other compatible media. It operates with a brass body and a PPS seal, rated for operation within an ambient temperature range of 14°F to 140°F and rated for steam temperatures up to 250°F. This valve includes a coil and seal, featuring a coil enclosure rated watertight without a junction box, and electrical connections with a 1/2 inch conduit and 18-inch leads. It operates at 120V AC and 60 Hz frequency with a coil wattage of 16.1 W. Environmental Rating: Indoor, Outdoor. UL Listed; NEMA enclosure ratings: 1, 2, 3, 3S, 4, 4X.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Closed
• - Body Material: Brass
• - Seal Material: PPS
• - Media Compatibility: Steam, Water
• - Maximum Fluid Temperature: 250°F (Steam)
• - Operating Ambient Temperature: 14°F to 140°F
• - Maximum Operating Pressure Differential: 15 psi (Steam, Water)
• - Orifice Diameter: 1/2 in
• - Flow Coefficient (Cv): 9.7
• - Coil Insulation Class: H
• - Electrical Voltage: 120V AC, 60 Hz
• - Electrical Connections: 1/2 in Conduit with 18 in Leads
• - Coil Enclosure: Watertight
• - Environmental Rating: Indoor, Outdoor
• - Includes: Coil and Seal
• - Dimensions: Overall Height 4-15/16 in, Overall Length 3-7/16 in, Overall Width 2-9/32 in
• - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
• - Standards: UL Listed
