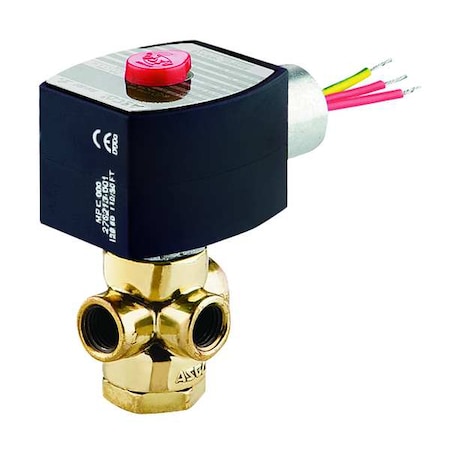

Asco 8320G182 - Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 12 V DC, Direct Mount, Brass
Asco 8320G182 - Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 12 V DC, Direct Mount, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Direct-acting, normally closed solenoid valve; fluid compatibility: air, inert gas, light oil, and water; maximum media temperature: 200°F; 3-way, 2-position configuration; nominal pipe size: 1/4 in (NPTF inlet/outlet). Nominal voltage: 12 V DC; coil and seal provided per specification.
Key Features:
- - Valve Type: Direct Mount, Direct Acting
- - Position and Operation: 3-Way, 2-Position, Normally Closed
- - Materials: Brass body, NBR seal material
- - Electrical: 12V DC, 17.1 W wattage, 1/2 in conduit with 18 in leads
- - Fluid Compatibility: Air, Inert Gas, Light Oil, Water
- - Pressure Ratings: Maximum differential 210 psi Air/Inert Gas, 225 psi Light Oil and Water; minimum differential 0 psi for all
- - Orifice Diameter: 1/16 in
- - Sizes and Dimensions: Nominal pipe size 1/4 in; center line pipe center size 2-3/4 in; overall dimensions approximately 3 in length, 2 in width, 3-3/4 in height
- - Environmental ratings: IP66; enclosure classes: NEMA 1, 2, 3, 3S, 4, 4X; operation indoors and outdoors defined by these ratings
- - Coil Insulation Class: F
- - Mounting Orientation: Horizontal or Vertical
- - Includes: Coil and seal components
