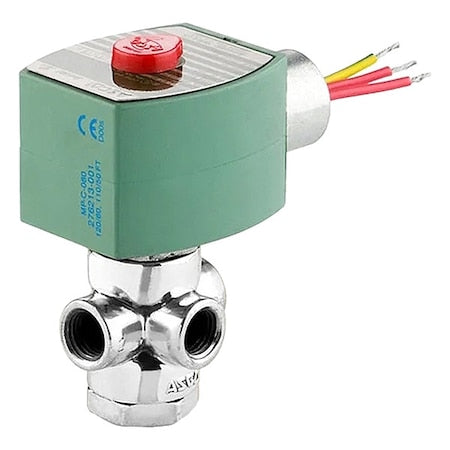

Asco 8320G224 24/60VAC - Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 24 V AC, Direct Mount, NBR

Asco 8320G224 24/60VAC - Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 24 V AC, Direct Mount, NBR

Brand: ASCO SKU: 8320G224 24/60VAC
$260.50 USD
$260.50 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The ASCO 8320G224 solenoid valve is a direct-acting, normally closed valve designed with a 3-way, 2-position configuration. It features a stainless steel straight valve body and operates at 24V AC with a frequency of 60 Hz. This valve is suitable for controlling the flow of air, inert gases, light oil, and water. It supports horizontal or vertical mounting orientations and includes both coil and seal components for installation. The valve has a nominal pipe size of 1/8 inch with NPT inlet and outlet connection types.

Key Features:

  • - Valve Type: Direct Mount, Direct Acting
  • - Valve Positions: 2-Position; Valve Starting Configuration: Normally Closed
  • - Valve Ways: 3-Way
  • - Body Material: Stainless Steel; Seal Material: NBR
  • - Orifice Diameter: 1/16 in
  • - Operating Pressure Differential - Maximum: 210 psi Air/Inert Gas, 225 psi Light Oil, Water; Minimum: 150 psi
  • - Ambient Temperature Range: 32 to 125°F
  • - Fluid Temperature Maximum: 200°F
  • - Coil Enclosure: Watertight; Coil Insulation Class: F; Wattage: 17.1 W
  • - Dimensions: Overall Height 3-5/8 in, Length 3-1/32 in, Width 1-15/16 in
  • - Includes: Coil and Seal
  • - Thread Type: NPT for both inlet and outlet connections
🏢
